Teardrop Pallet Racking
The universal selective pallet rack with teardrop-punched uprights and pin-lock beam connections β the global industry standard for tool-free adjustable, high-capacity warehouse storage that is cross-compatible with major brands worldwide.
What Is Teardrop Pallet Racking?
The global standard in selective pallet storage β named after the distinctive teardrop-shaped perforations punched into every upright frame.
Teardrop pallet racking is the most widely used selective pallet storage system in the world. Named after the distinctive teardrop-shaped slot perforations punched along the upright columns, this system uses a pin-and-slot beam connection that enables tool-free adjustment of beam levels β simply lift a beam, move it to a new slot position, and drop it into place with the locking pins engaging automatically.
The teardrop slot pattern has become the de facto global standard, making these racks cross-compatible with most major brands including Interlake Mecalux, Unarco, Ridg-U-Rak, and others. This universality means you are never locked into a single supplier β replacement parts, additional beams, and expansion components are readily available from multiple sources worldwide. With load capacities up to 4000kg per beam level and heights reaching 12m, teardrop racking handles everything from standard pallets to heavy industrial loads.
Universal Compatibility
Cross-compatible with most major teardrop rack brands β never locked into one supplier
Tool-Free Adjustment
Pin-lock beams drop into teardrop slots β no bolts, clips, or tools needed to reposition
Up to 4000kg per Level
Heavy-duty capacity for standard and oversized pallets in any warehouse environment
100% Pallet Selectivity
Direct forklift access to every pallet position β no moving other pallets first
Warehouse Storage Challenges
Common pallet storage problems that teardrop racking eliminates β delivering flexibility, compatibility, and reliability.
Vendor Lock-In
Proprietary rack systems force you to buy replacement parts and expansions from a single supplier at premium prices.
β Universal teardrop β multi-brand compatibleSlow Reconfiguration
Bolt-together and clip-on systems require tools, spare hardware, and multiple workers to adjust beam heights.
β Tool-free pin-lock beam repositioningExpensive Structural Rack
Structural bolt-together pallet racking costs 30-50% more than roll-formed teardrop for similar load capacities.
β Roll-formed steel at 30-50% less costInflexible Beam Heights
Fixed-level racking wastes vertical space when storing pallets of different heights across seasons and product lines.
β 50mm pitch infinite adjustabilitySafety Concerns
Improperly designed racking without safety features leads to beam dislodgement, column damage, and inventory loss.
β Auto-lock pins, column guards, wire deckLimited Accessories
Niche rack systems have limited aftermarket accessories β wire decking, dividers, and guards may not be available.
β Largest accessory ecosystem globallyEngineered for Universal Performance
The teardrop pallet racking system combines the global standard connection with heavy-duty load capacity and maximum warehouse flexibility.
Teardrop Slot Design
Distinctive teardrop-shaped perforations punched at 50mm pitch along uprights β the global standard for cross-brand compatibility.
Auto-Lock Pin Connection
Beam end connectors with spring-loaded locking pins engage automatically when dropped into teardrop slots β secure, instant, tool-free.
Up to 4000kg per Level
Roll-formed Q235B/Q345B steel uprights and step beams support heavy pallet loads across 2-6 beam levels per bay.
Seismic-Ready Design
Engineered for Zone IV seismic requirements with braced frames, column base plates, and chemical anchor bolt systems.
50mm Adjustment Pitch
Fine-pitch teardrop slots allow precise beam height adjustment to accommodate pallets of any height without wasted space.
Classic Orange & Blue
Industry-standard colour scheme β orange beams and blue uprights β with custom RAL colours available for branding needs.
Modular & Scalable
Add starter and add-on bays, extend rows, and integrate with wire decking, pallet supports, and column guards at any time.
Cross-Brand Compatible
Works with Interlake Mecalux, Unarco, Ridg-U-Rak, Frazier, and most other teardrop-standard rack systems globally.
Teardrop Racking Configurations
From standard selective to high-density applications β the teardrop connection supports multiple racking configurations for every warehouse need.
Standard Selective
Single-deep racking with 100% pallet selectivity. The most popular warehouse configuration β direct forklift access to every pallet position from the aisle.
Double Deep
Back-to-back teardrop racking for double-deep pallet storage. 40% more capacity than selective with FILO access using deep-reach forklifts.
Narrow Aisle (VNA)
Teardrop uprights in narrow-aisle configuration with wire-guided turret trucks. 50% more storage than standard selective with full selectivity.
Drive-In Compatible
Teardrop uprights configured for drive-in deep-lane storage. 85% space utilisation for bulk storage of same-SKU pallets in cold storage and distribution.
Multi-Level Pick Module
Teardrop racking supporting elevated pick platforms with carton flow, conveyors, and gravity lanes for order fulfilment operations.
Wire Deck Shelving
Teardrop uprights with wire mesh decking for hand-loaded carton and bin storage. NFPA 13 sprinkler compliant for fire-safe warehousing.

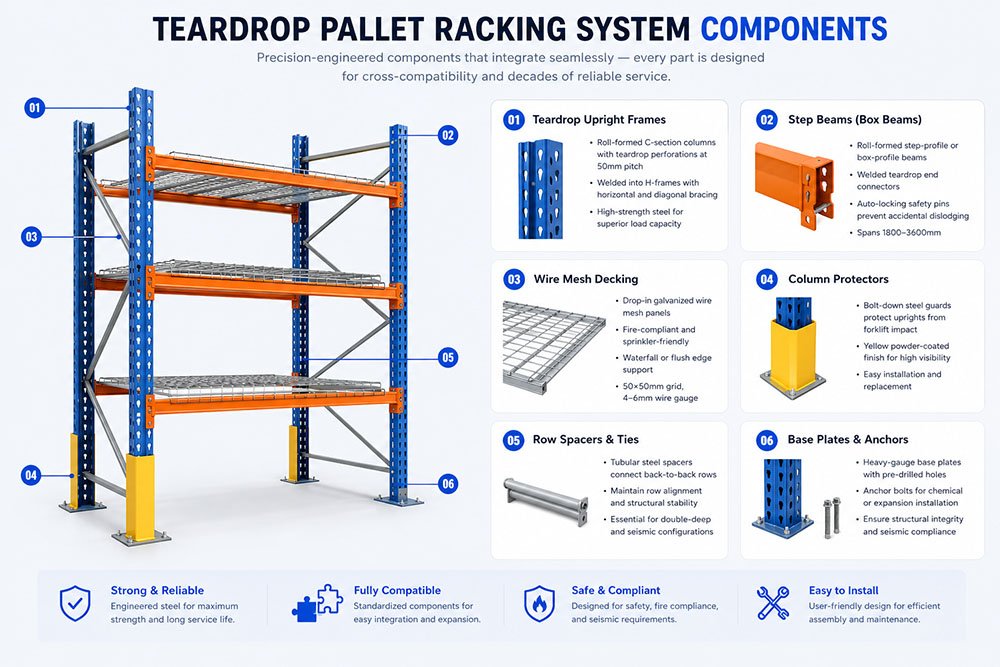

System Components
Precision-engineered components that integrate seamlessly β every part is designed for cross-compatibility and decades of reliable service.
Teardrop Upright Frames
Roll-formed C-section columns with teardrop perforations at 50mm pitch. Welded into H-frames with horizontal and diagonal bracing.
Step Beams (Box Beams)
Roll-formed step-profile or box-profile beams with welded teardrop end connectors and auto-locking safety pins. Spans 1800-3600mm.
Wire Mesh Decking
Drop-in galvanized wire mesh panels for fire-compliant pallet support. Waterfall or flush edge. 50Γ50mm grid, 4-6mm wire gauge.
Column Protectors
Bolt-down steel guards that shield upright columns from forklift impact damage. Yellow powder-coated for high visibility.
Row Spacers & Ties
Tubular steel spacers connect back-to-back rows for stability. Essential for double-deep and seismic configurations.
Base Plates & Anchors
Heavy-gauge base plates with pre-drilled holes for chemical or expansion anchor bolts. Essential for structural integrity and seismic compliance.
Technical Specifications
Complete engineering data for Gieantech teardrop pallet racking β fully customisable to your warehouse layout and load requirements.
π Structural Dimensions
βοΈ Material & Finish
ποΈ Load & Safety
π’ Logistics & Trade
Industry Applications
Teardrop pallet racking is the universal standard across every industry that stores goods on pallets β from distribution to manufacturing to cold chain.
3PL & Distribution
Multi-client warehousing with mixed SKU inventory. Full selectivity enables fast order picking and flexible pallet positioning.
Retail & E-Commerce
Fulfilment centre pick modules, overstock storage, and cross-dock staging with wire deck shelving for carton-level picking.
Manufacturing
Raw material buffer, WIP staging, and finished goods storage adjacent to production lines with heavy pallet capacities.
Cold Storage
Frozen food and pharmaceutical cold chain storage. Galvanized finish options for -30Β°C environments with reduced aisle counts.
Food & Beverage
FIFO pallet rotation for perishable goods, brewery and dairy storage, and FSMA-compliant warehousing with wire mesh decking.
Automotive
Heavy component and sub-assembly storage with up to 4000kg per level for engines, transmissions, and body panels on pallets.
Pharmaceutical
GMP-compliant storage with lot traceability, controlled environment, and 100% selectivity for expiry-date and batch management.
Building Materials
Heavy-load storage for bagged cement, tiles, lumber, pipes, and hardware with reinforced beams and column protectors.
Tool-Free Beam Installation
The teardrop pin-lock system is the fastest, simplest beam connection in the pallet racking industry β no tools, clips, or bolts required.
Position Frames
Stand upright frames at the desired bay spacing and anchor base plates to the concrete floor with chemical or expansion bolts.
Align Beam End
Hold the beam at the desired height and align the welded end connectors with the teardrop slots on the upright column face.
Drop & Lock
Drop the beam connector pins into the teardrop slots. The spring-loaded locking pins automatically engage, securing the beam in place.
Verify Lock
Visually confirm the safety pins have fully engaged through the teardrop slots. Apply a gentle upward pull to verify positive lock.
Add Decking & Load
Place wire mesh decking, pallet supports, or timber boards on the beams. The bay is ready for pallet loading immediately.
Teardrop vs Other Rack Systems
See how teardrop pallet racking compares to alternative connection types and racking systems across key metrics.
| Feature | Teardrop Rack | Keystone Rack | Structural Rack | Clip-Lock Rack | Bolt-Together |
|---|---|---|---|---|---|
| Beam Connection | Pin & Slot (auto-lock) | Hook & Slot | Bolted Structural | Spring Clip | Bolt & Nut |
| Tool-Free Install | β Fully tool-free | β Tool-free | β Wrenches required | β Tool-free | β Wrenches required |
| Cross-Brand Compatible | β Universal standard | β οΈ Limited brands | β Proprietary | β Proprietary | β Proprietary |
| Load Capacity | ββββ Up to 4000kg | ββββ Up to 4000kg | βββββ Up to 6000kg | βββ Up to 2500kg | ββββ Up to 4000kg |
| Cost | ββββ Cost-Effective | βββ Medium | ββ Expensive | ββββ Affordable | βββ Medium |
| Aftermarket Parts | βββββ Largest | βββ Good | ββ Limited | ββ Limited | ββ Limited |
| Adjustment Speed | βββββ Fastest | ββββ Fast | ββ Slow (unbolt) | ββββ Fast | ββ Slow |
| Best For | Universal standard | North American legacy | Extreme loads / impact | Light-medium duty | Permanent installs |
Design & Implementation Process
From warehouse survey to fully loaded racking β a structured 6-step engineering process for flawless teardrop racking installation.
Site Survey & Consultation
Engineers assess warehouse dimensions, floor condition, forklift types, pallet sizes, and load requirements to define optimal racking parameters and layout.
Layout Design & 3D CAD
Free AutoCAD layout drawings and 3D warehouse renderings within 48 hours. Includes bay spacing, beam heights, aisle widths, and fire sprinkler clearances.
Structural Engineering
Load calculations, seismic analysis, floor slab capacity verification, and structural certification. Full engineering documentation for building authority approval.
Manufacturing & QC
Roll-forming, welding, powder coating, and assembly in our Dongguan factory. Multi-stage inspection at every production milestone with load testing.
Shipping & Logistics
Components bundled and palletised for container shipping. Full export documentation, packing list, and customs clearance support for worldwide delivery.
Installation & Commissioning
On-site installation by our teams or detailed assembly guides for local contractors. Plumb and level verification, load testing, and safety sign-off.
Why Gieantech?
15+ years of pallet racking manufacturing, factory-direct pricing, and global project delivery to 57+ countries.
Factory Direct Pricing
Buy teardrop racking directly from our Dongguan factory β no middlemen, no dealer markups. Best ex-factory pricing guaranteed.
Free Engineering Design
Complimentary site survey, CAD layout, 3D rendering, and structural calculations. No design fees and no obligation.
Cross-Brand Compatible
Our teardrop profiles are manufactured to global standard specifications β compatible with Interlake, Unarco, and other major brands.
57+ Countries Delivered
Proven project delivery to North America, Europe, Middle East, Australia, Southeast Asia, and Africa with full logistics support.
ISO 9001 Quality System
Multi-stage QC from coil to finished product. Roll-form tolerances, weld integrity, and load testing verified at every stage.
10-Year Structural Warranty
Industry-leading warranty on upright frames and beam structures. Lifetime technical support and replacement parts service.
Certifications & Standards
Every Gieantech teardrop pallet rack meets international structural, safety, and quality standards for worldwide deployment.
ISO 9001:2015
International quality management system covering design, roll-forming, welding, and inspection processes.
CE Marking
European conformity declaration for structural safety and environmental compliance across EU member states.
AS 4084
Australian standard for steel storage racking β design, fabrication, installation, and load verification.
SGS Tested
Third-party structural load testing, material analysis, and weld quality inspection by SGS laboratories.
FEM / EN 15512
European racking design standard for adjustable pallet racking β structural analysis and safety factor verification.
Frequently Asked Questions
Everything you need to know about teardrop pallet racking β from specifications and compatibility to ordering and installation.
Get Your Teardrop Racking Quote
Free warehouse layout design with 3D CAD rendering and structural calculations. Factory-direct pricing with 10-year structural warranty.
