Stack Racking System
Versatile stackable racks that combine pallet and racking functions — stack up to 4-5 layers high for maximum vertical storage without fixed racking infrastructure. Portable, collapsible, and forklift-ready for dynamic warehouse environments.
What Is Stack Racking?

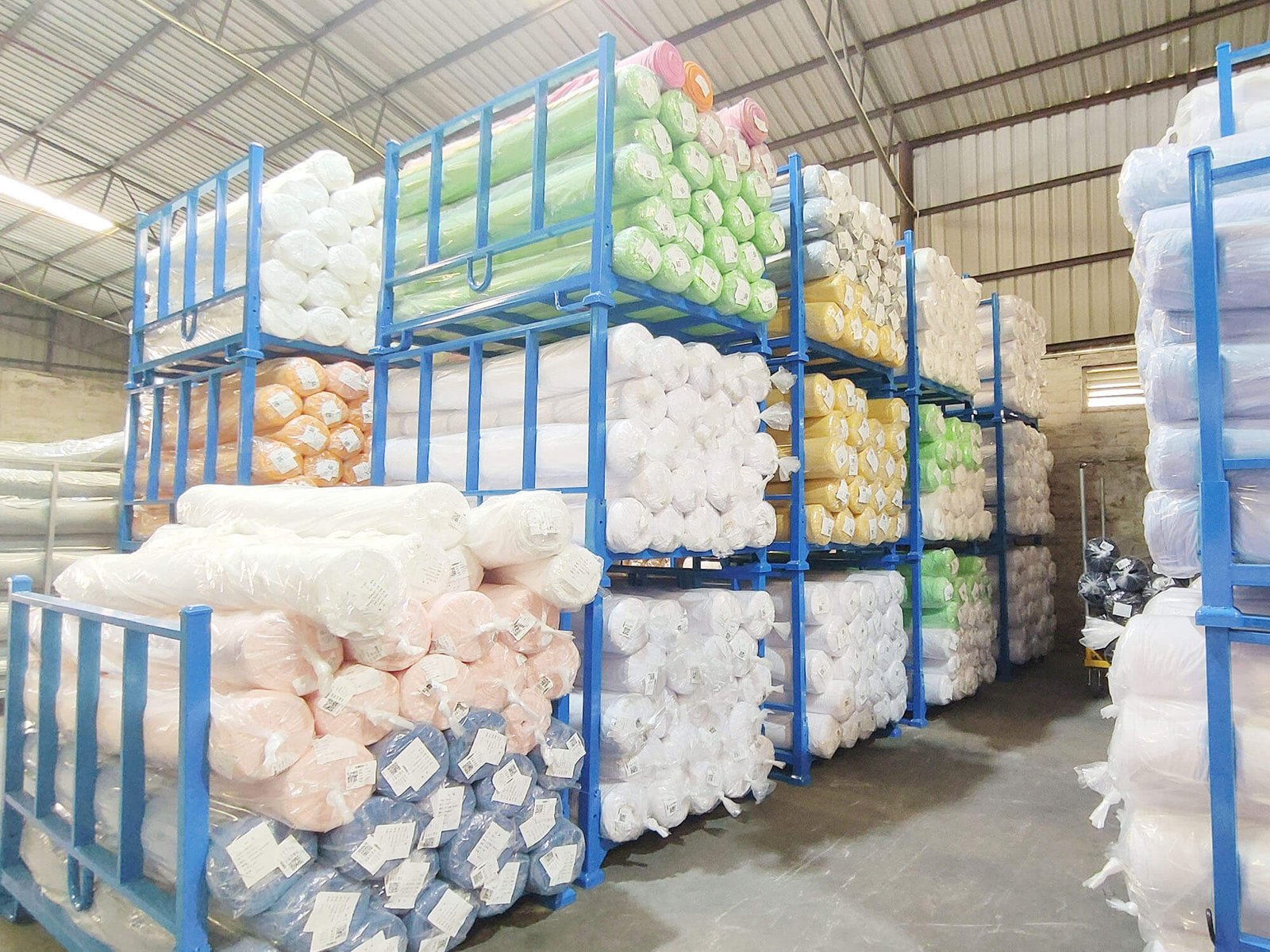

A stack racking system (also called stackable racks, portable stacking racking, or post pallets) is a versatile handling and storage equipment derived from the traditional pallet. It integrates the functions of a steel pallet and a rack — carrying goods like a pallet while offering the ability to stack multiple units vertically to create three-dimensional storage without permanent racking infrastructure.
Unlike fixed pallet racking systems that require bolted uprights and beams, stackable racks are freestanding, portable units that can be repositioned anywhere in the warehouse using a standard forklift. Each unit features a steel base deck with four corner posts (removable, collapsible, or fixed) that interlock with the unit below, enabling safe stacking of 2-5 layers. When not in use, collapsible and removable models fold flat or disassemble for compact storage, freeing up to 70% of occupied space.
Stack racking systems are ideal for warehouses with changing layouts, seasonal inventory surges, outdoor storage yards, manufacturing WIP staging, and logistics operations that need flexible, relocatable storage. They are widely used across automotive, retail, food & beverage, textiles, construction materials, and third-party logistics industries where storage needs fluctuate and permanent racking is impractical or too costly.
Key Features & Advantages
Stackable racks deliver unmatched flexibility, portability, and cost-efficiency for modern warehouse operations.
Vertical Stacking
Stack 2-5 layers high with secure interlocking posts. Maximize vertical space without permanent racking infrastructure or anchor bolts.
Collapsible Design
Fold flat or disassemble when not in use — save up to 70% storage space. Ideal for seasonal inventory fluctuations.
Forklift Portable
Standard 4-way forklift entry for easy relocation. Move loaded units anywhere — no fixed installation or floor anchoring required.
Fully Customizable
Custom sizes from 800mm to 3600mm width, 800mm to 1200mm depth, 1000mm to 2400mm height. Tailored to your exact cargo dimensions.
Heavy Load Capacity
Up to 2000kg per unit with Q235 cold-rolled or hot-rolled steel construction. Welded and powder-coated for industrial durability.
Secure Interlocking
Plug-in post / socket joint system ensures stable stacking with no lateral shifting. Anti-slip feet prevent floor movement during loading.
Indoor & Outdoor Use
Hot-dip galvanized options for outdoor yards and corrosive environments. Standard powder coat for indoor warehouse use.
Cost-Effective
Eliminate permanent racking investment. No installation labor, no anchor bolts, no building permits. Reusable across multiple warehouse locations.
Stack Rack Configurations
Choose from collapsible, removable, and fixed designs — each engineered for specific storage scenarios and cargo requirements.

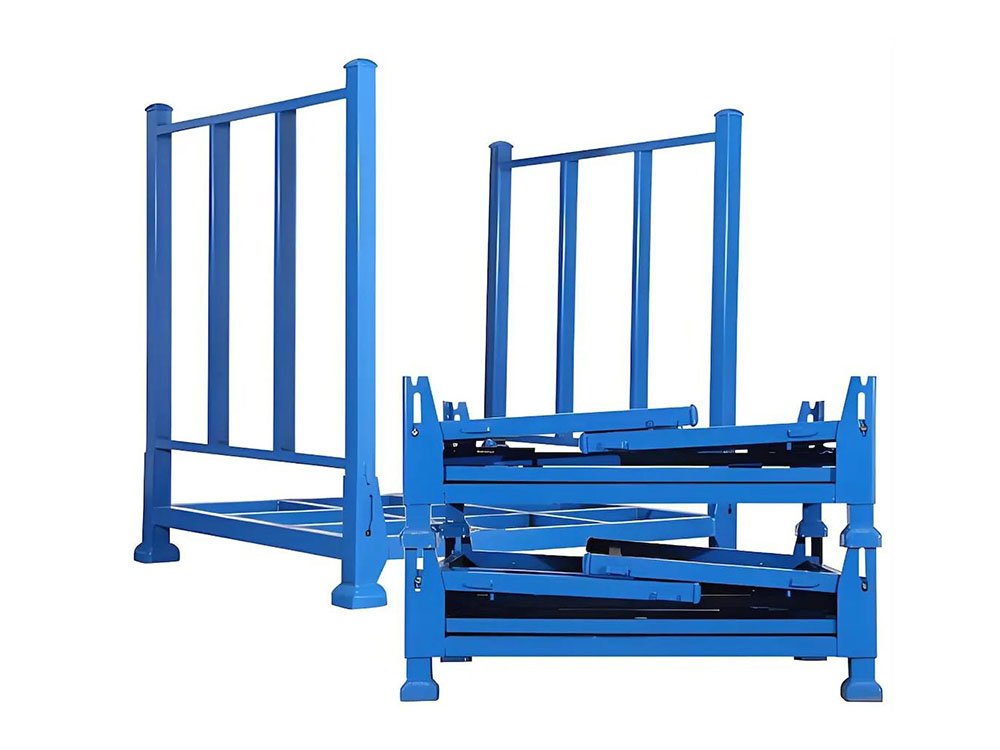

Collapsible Stacking Rack
Posts fold down flush with the base deck when not in use, saving up to 70% storage space. Ideal for seasonal operations, return logistics, and warehouses with fluctuating inventory levels. Quick setup in seconds — no tools required.

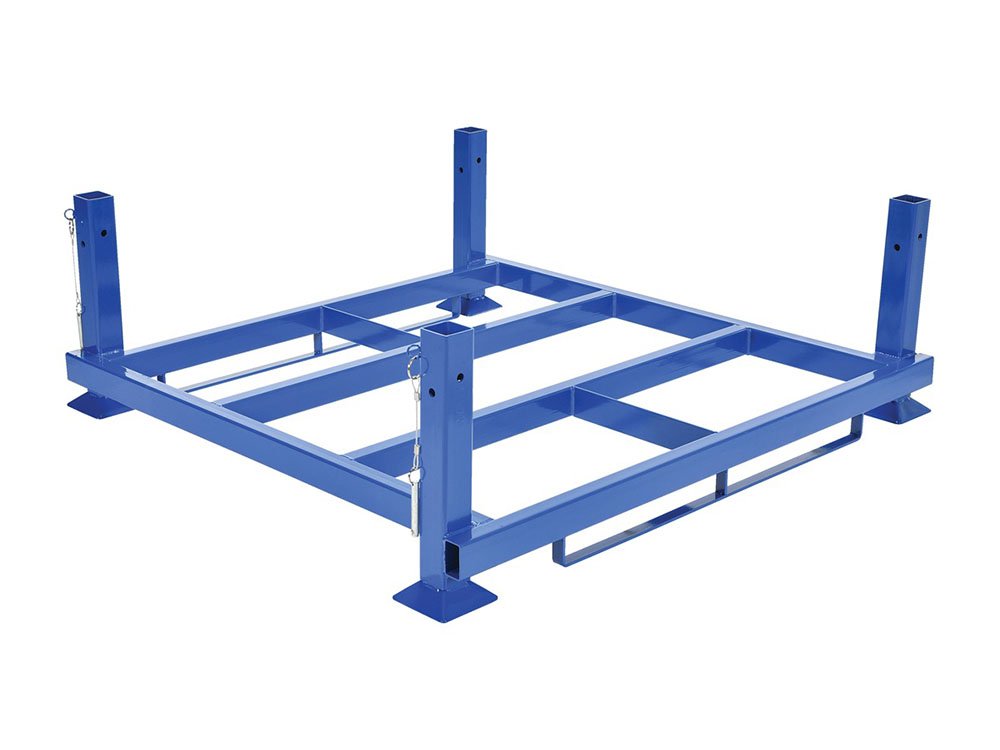

Removable (Detachable) Stacking Rack
Posts are completely removable and stored separately. Base decks nest flat for compact shipping and warehousing. Best for operations needing maximum flexibility — reconfigure post height, add mesh panels, or convert to open pallets.
Fixed (Welded) Stacking Rack
Posts are permanently welded to the base for maximum structural rigidity and load capacity. Ideal for heavy or irregularly-shaped items that require robust containment. Unified specifications make inventory management effortless.
Nestable / Internestable Stack Rack
Tapered post design allows empty units to nest inside each other, reducing return shipping volume by up to 60%. Perfect for logistics companies, container shipping, and operations with high empty-rack return frequency.
System Components
Every Gieantech stack rack is engineered with precision components for maximum durability, safety, and operational efficiency.
Steel Base Deck
Heavy-gauge Q235 steel base with integrated forklift entry channels (4-way access). Reinforced cross-members prevent flexing under maximum load. Optional perforated or mesh deck surfaces.
Corner Posts
Four steel corner posts (40×40mm to 60×60mm square tube) with interlocking sockets at top and plug-in feet at bottom. Available in fixed, removable, or collapsible configurations.
Interlocking System
Precision-machined post-to-socket joints ensure stable vertical alignment when stacked. Self-centering design prevents lateral shifting — critical for multi-layer stability.
Side Panels (Optional)
Wire mesh, solid steel, or corrugated side panels for small-item containment. Available on 2, 3, or 4 sides. Removable panels for flexible access configuration.
Hinge / Locking Mechanism
Spring-loaded locking pins (removable type) or industrial hinges (collapsible type) for secure fold/unfold operation. Safety latch prevents accidental collapse during loading.
Surface Treatment
Electrostatic powder coating (60-80μm, RAL color options) for indoor use. Hot-dip galvanizing (80-120μm) for outdoor, coastal, or corrosive environments. UV-resistant finish available.
Technical Specifications
Industry-standard dimensions and capacities — all fully customizable to your exact warehouse and cargo requirements.
📐 Dimensions
⚗ Material & Finish
💪 Load & Safety
🌎 Logistics & Trade
Industry Applications
From manufacturing floors to outdoor yards, stackable racks serve diverse industries with flexible, portable storage solutions.
Automotive & Parts
WIP staging for engine blocks, body panels, and transmission components. Stack racks travel between production lines, paint shops, and shipping docks.
Manufacturing & WIP
Temporary storage for work-in-progress items between production stages. Collapsible racks keep factory floors organized without permanent racking.
3PL & Distribution
Flexible storage for multi-client operations with varying SKU sizes. Relocate racks to match dynamic floor plans and seasonal demand peaks.
Food & Beverage
Stack beverages, canned goods, and packaged food in cold storage or dry warehouses. Galvanized finish for food-safe environments.
Textiles & Apparel
Store fabric rolls, garment cartons, and finished goods. Lightweight collapsible racks optimize space in garment district warehouses.
Construction & Building
Outdoor yard storage for tiles, bricks, pipes, and steel sections. Hot-dip galvanized racks withstand weather and heavy handling.
Retail & E-Commerce
Peak-season overflow storage for holiday inventory surges. Deploy in days, remove when demand normalizes — no permanent infrastructure.
Pharmaceutical & Chemical
Isolated batch storage for regulatory compliance. Label each rack unit with batch/lot numbers for full traceability and FIFO rotation.
How Stack Racking Works
A simple, tool-free system — load goods, stack units vertically, and move anywhere with a standard forklift.
Place Base Unit
Position the first stack rack on the floor. Forklift places cargo onto the base deck — centered within the corner posts for stability.
➔Stack Vertically
Lift the next loaded unit and place it on top. Corner post plugs insert into the lower unit sockets — self-centering with no tools needed.
➔Repeat to Max Height
Continue stacking up to 4-5 layers. Each interlocking joint adds vertical stability. The stacked column forms a freestanding storage tower.
➔Unstack & Relocate
Retrieve from top down with a forklift. When empty, fold or disassemble racks for compact storage — saving up to 70% of space.
No Installation — Instant Deployment
Unlike pallet racking that requires professional installation, floor anchoring, and building permits, stack racks are ready to use out of the box. Unload from the container, start stacking immediately. Relocate to a different warehouse, outdoor yard, or production line anytime.
Stack Racking vs Other Storage Systems
Compare stackable racks against pallet racking, wooden pallets, and storage cages to find the best fit for your operation.
| Feature | Stack Rack | Selective Pallet Rack | Wooden Pallet | Wire Mesh Container | Floor Stacking |
|---|---|---|---|---|---|
| Installation | ✔ None (instant) | Professional install | None | None | None |
| Portable | ✔ Yes (forklift) | ✘ Fixed to floor | ✔ Yes | ✔ Yes | N/A |
| Load Capacity | 1000-2000kg | 500-4000kg | 500-1000kg | 500-1500kg | Depends on goods |
| Stackable Layers | 4-5 layers | 2-8 levels (beam) | 2-3 layers (limited) | 3-4 layers | 1-2 (risk of collapse) |
| Collapsible | ✔ Yes (fold flat) | ✘ No | ✘ No | ✔ Some models | N/A |
| Indoor + Outdoor | ✔ Both | Indoor only | Both (limited life) | ✔ Both | Both |
| Reusability | 10+ years | 15+ years | 1-3 years | 8-10 years | N/A |
| Cargo Protection | ✔ Posts protect | ✔ On beams | ✘ No protection | ✔ Mesh enclosed | ✘ None |
| Space When Empty | ✔ Fold to 1/4 | Always occupies space | Stacks flat | Fold to 1/3 | N/A |
| Cost Per Position | $$ | $$$ | $ | $$ | Free |
| Best For | Flexible portable storage | Permanent warehouse | Light, disposable | Small items, bulk | Very light goods |
Custom Design & Manufacturing Process
From requirement analysis to container shipment, our proven 6-step workflow delivers your stackable racks on time and on spec.
Requirement Analysis
We analyze your cargo dimensions, weight, stacking needs, and environment (indoor/outdoor). Determine the optimal rack type: collapsible, removable, fixed, or nestable.
CAD Design & Drawing
Custom engineering drawings with exact dimensions, post configuration, base deck layout, forklift entry points, and interlocking socket positions.
Sample & Approval
Prototype production for physical verification. Test load capacity, stacking stability, fold/unfold mechanism, and forklift handling. Adjust design per feedback.
Batch Manufacturing
Production with laser cutting, CNC bending, robotic welding, and precision assembly. Quality checkpoints at every stage — steel thickness, weld strength, dimensional accuracy.
Surface Treatment
Electrostatic powder coating (indoor) or hot-dip galvanizing (outdoor) applied after full degreasing and phosphating pre-treatment. Thickness verified with gauges.
Container Shipping
Collapsible racks shipped folded to maximize container density. KD (knocked-down) packaging reduces freight costs. Loading supervision and customs documentation included.
Why Choose Gieantech?
Your trusted stack racking manufacturer — factory-direct pricing with precision engineering and global delivery.
Factory-Direct Pricing
Own manufacturing facilities in Dongguan with 10+ partner factories. No middlemen, no markups — competitive pricing with strict quality control at every production stage.
Custom Engineering
In-house design team creates custom stack racks for any cargo type. Free CAD drawings, 3D renderings, and prototype samples before bulk production.
57+ Countries Exported
Proven global supply chain with container-optimized shipping. Multilingual documentation, customs support, and trade assurance protection on every order.
Premium Steel Quality
Q235/Q345 steel from certified mills with SGS material testing. CNC laser cutting, robotic welding, and precision-machined interlocking components.
10-Year Service Life
Industrial-grade construction with premium surface treatment. Powder coat or hot-dip galvanizing ensures long-term durability in any environment.
Fast 15-25 Day Lead Time
Rapid manufacturing with flexible payment terms (T/T, L/C). Dedicated project coordinator from order confirmation to container loading.
Quality Certifications
Gieantech stack racking systems meet the highest international quality, safety, and manufacturing standards.
ISO 9001:2015
Quality Management System certified — process control from steel sourcing through welding, coating, and final inspection.
CE Marking
European conformity certification for health, safety, and environmental protection compliance across EU markets.
AS 4084
Australian Steel Storage Racking standard — tested for structural integrity, load capacity, and stability.
SGS Tested
Independent third-party load testing, material certification, and dimensional verification by SGS inspection services.
FEM / EN 15512
European standard for steel static storage systems — structural design calculations and testing compliance.
Frequently Asked Questions
Everything you need to know about stackable racks, portable stacking racking, and Gieantech's custom solutions.
Pallet racking is a permanent, fixed storage system bolted to the warehouse floor with upright frames and horizontal beams. Stack racks are freestanding, portable units that can be moved anywhere with a forklift — no installation, no floor anchoring. Choose pallet racking for permanent high-density storage; choose stack racks when you need flexibility, portability, temporary storage, or cannot modify the building structure.
Most stack racks can be safely stacked 2-5 layers high when loaded, depending on the rack type, load weight, and post height. Collapsible models typically stack 2-4 layers, while heavy-duty fixed models can reach 4-5 layers. The maximum stacking height is determined by the load capacity per unit, the interlocking system strength, and the center of gravity. Our engineers calculate the safe stacking limit for your specific cargo and provide a certified rating.
Stack racks are versatile and can store a wide range of goods: palletized cartons, automotive parts, engine blocks, fabric rolls, beverages, building materials, tires, drums, metal sheets, and machinery components. They are especially useful for irregularly-shaped items that don't fit neatly on standard pallet racking beams, and for goods that need to travel between warehouse zones, production lines, or even between facilities.
Yes. For outdoor use, we recommend hot-dip galvanized stack racks with 80-120µm zinc coating thickness. Galvanizing provides excellent corrosion resistance against rain, humidity, salt spray (coastal environments), and UV exposure. Standard powder-coated racks are designed for indoor use. We also offer stainless steel options for highly corrosive chemical or food processing environments.
A collapsible (foldable) stack rack has corner posts connected to the base via industrial hinges. When the rack is empty, the posts fold down flat against the base deck, reducing the overall height to roughly 1/4 of the original. This saves up to 70% of storage space and dramatically reduces return shipping costs. Collapsible racks are the most popular type for operations with seasonal peaks or high empty-rack return frequency.
Standard sizes include: Width 1200mm, 1700mm, 2200mm, 2700mm, 3600mm; Depth 800mm, 1000mm, 1200mm; Height 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, 2400mm. Beyond these standard sizes, Gieantech offers fully customized dimensions — we manufacture stack racks tailored to your exact cargo size and warehouse layout. Just provide your cargo dimensions and stacking requirements, and our engineers will design the optimal configuration.
Standard counterbalance forklifts or reach trucks with standard fork tines can handle all Gieantech stack racks. The base deck features 4-way forklift entry channels compatible with standard fork widths (100-150mm tine width, 560-680mm fork spacing). No specialized equipment is needed. For high stacking (4-5 layers), ensure your forklift has sufficient lift height and rated capacity at the required mast height.
Minimum order quantity is 50 units (negotiable for first-time orders or trial quantities). Standard lead time is 15-25 days from order confirmation to factory dispatch, depending on quantity, customization level, and surface treatment. We support T/T (30% deposit, 70% before shipping), L/C at sight, and Alibaba Trade Assurance. Shipping terms include FOB Shenzhen/Guangzhou, CIF, and DDP delivery.
Collapsible and removable stack racks are shipped in folded/disassembled state to maximize container utilization — up to 3-4x more units per container compared to assembled shipping. Fixed racks are nested or stacked to optimize space. We handle all export documentation including commercial invoice, packing list, bill of lading, certificate of origin, and customs clearance assistance. Typical container loads: 200-400 folded collapsible racks per 40' HC container.
Get Your Stack Racking Quote
Free custom design, sample production, and detailed quotation — no obligation. Our engineers will design the optimal stackable rack solution for your warehouse and cargo.
