Slotted Angle Rack
The most versatile steel shelving system ever made β perforated angle iron uprights and universal bolt-through connections let you build any storage configuration imaginable, from simple shelves to complex workbenches, display racks, and custom frameworks.
What Is a Slotted Angle Rack?
The original universal shelving system β perforated steel angles that bolt together to create any storage structure you can imagine.
Slotted angle racking β also called perforated angle shelving, steel angle rack, or Dexion-type shelving β is a universal steel storage system built from L-shaped (angle iron) profiles punched with rows of slots and holes along both flanges. These perforations allow bolts, nuts, and clips to connect at any point along the angle, enabling unlimited configurations: standard shelving, corner units, L-shapes, U-shapes, workbenches, display stands, trolleys, and even structural frameworks.
Unlike proprietary racking systems that lock you into one configuration, slotted angle is truly open-source β the angles can be cut to any length with a hacksaw, drilled for custom mounting, and combined with steel, MDF, or wire mesh shelves. This makes it the go-to system for workshops, retail stores, schools, offices, and any application that demands maximum customisation at minimum cost. Load capacity ranges from 100-500kg per shelf depending on the angle gauge and shelf span.
Unlimited Configurations
Build shelves, workbenches, trolleys, or frameworks β the only limit is your imagination
Cut-to-Length
Angles can be cut with a hacksaw to any length for truly custom-fit installations
Lowest Unit Cost
The most affordable industrial-grade steel shelving system on the market
Universal Bolt Connection
Standard M6/M8 bolts and nuts β replaceable, available anywhere, zero lock-in
Storage Challenges Solved
Common frustrations with off-the-shelf storage solutions β and how slotted angle racks eliminate every single one.
Fixed Sizes Only
Standard shelving comes in pre-set widths, depths, and heights that never quite fit your exact space requirements.
β Cut angles to any length you needProprietary Lock-In
Branded racking systems use proprietary connectors β replacement parts are expensive and only available from one supplier.
β Standard M6/M8 bolts, available globallyHigh Setup Costs
Custom storage solutions require expensive engineering, specialised fabrication, and professional installation.
β DIY assembly with basic hand toolsCannot Repurpose
When storage needs change, fixed shelving becomes scrap β it can't be reconfigured into a different structure.
β Unbolt, rebuild into anything newOne Shape Only
Most shelving systems only make rectangular shelves β no corner units, L-shapes, workbenches, or custom structures.
β Build any shape: L, U, corner, benchInconsistent Quality
Budget angle iron from local markets varies in gauge, hole alignment, and finish β leading to wobbly, uneven assemblies.
β Precision-punched, factory QC'd steelBuilt for Total Flexibility
Every aspect of slotted angle racking is designed for maximum customisation β the original open-source steel shelving system.
Universal Bolt Connection
Standard M6/M8 bolts and nuts connect at any slot position along both flanges β no proprietary hardware, no vendor lock-in.
Cut to Any Length
Angles are easily cut with a hacksaw, angle grinder, or band saw to create perfectly fitted uprights and cross-members.
Powder-Coated Finish
60-100ΞΌm electrostatic powder coat in custom RAL colours provides corrosion resistance, scratch protection, and clean aesthetics.
Up to 500kg per Shelf
Heavy-gauge angles (2.0-3.0mm) with proper bracing support up to 500kg per shelf level for industrial parts and bulk goods.
Infinite Configurations
Build shelves, workbenches, tool boards, display stands, trolleys, partitions, or structural frames β the only limit is imagination.
Ultra Flat-Pack
Angles nest together for extremely compact shipping β up to 500+ sets per 20GP container for the lowest freight cost available.
100% Reusable
Unbolt, reconfigure, and rebuild into completely different structures as your storage needs change β zero material waste.
Custom Sizes & Colours
Any RAL colour, any angle gauge, any length. Standard profiles from 30Γ30mm to 50Γ50mm with custom options available.
Slotted Angle Configurations
From simple warehouse shelves to complex custom workstations β slotted angle profiles enable six core application types and beyond.

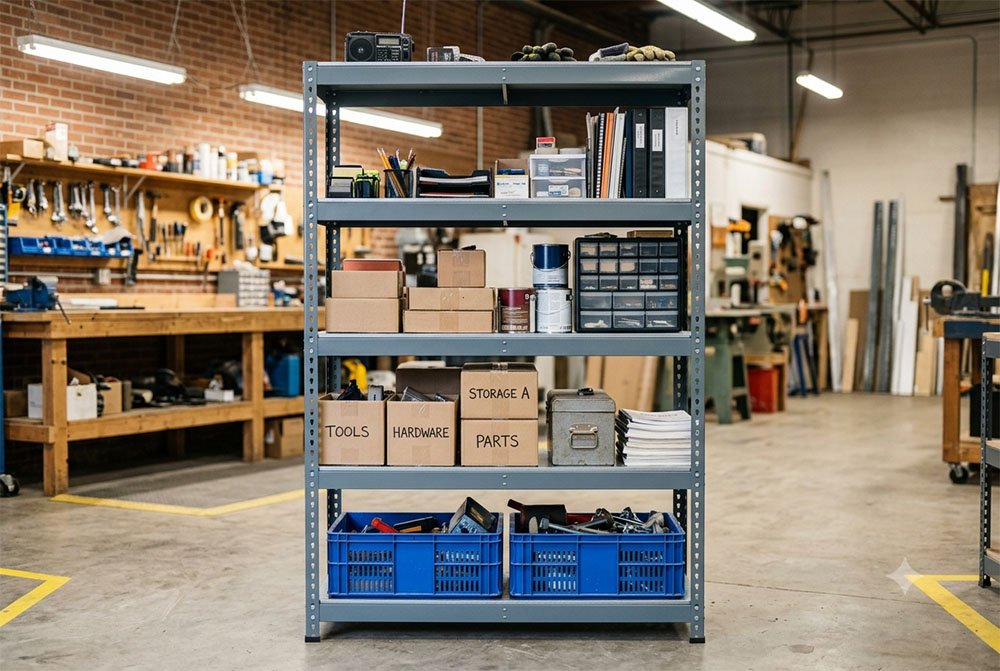

Standard Shelving
Classic rectangular shelving units with 3-6 shelf levels. The most popular configuration for warehouses, stockrooms, and retail back-of-house storage applications.

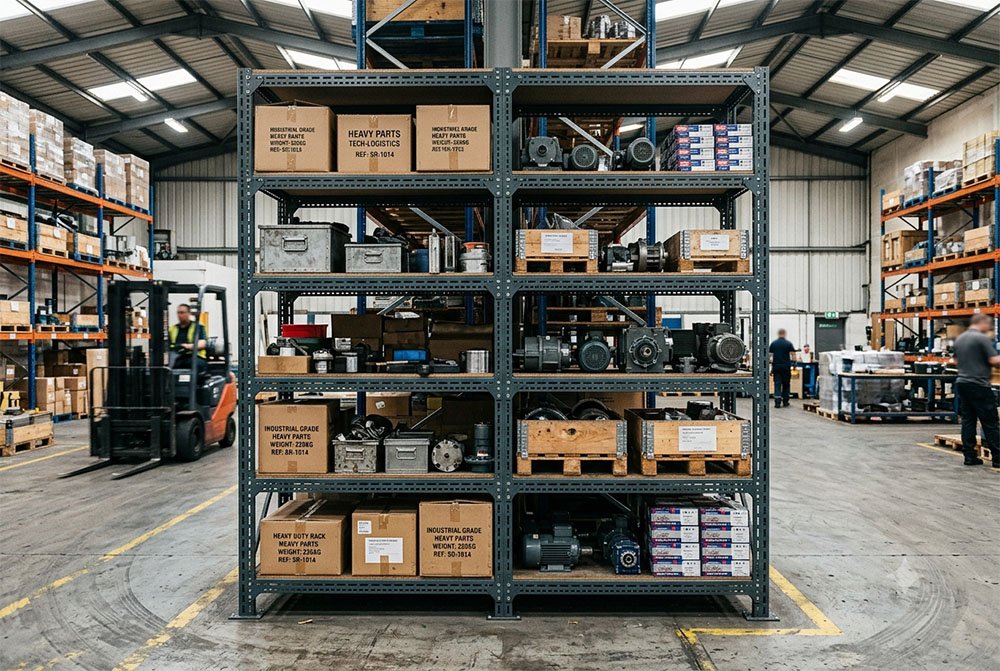

Heavy-Duty Industrial
Thicker gauge angles (2.5-3.0mm) with additional bracing for loads up to 500kg per shelf. Designed for workshop parts, auto components, and heavy tool storage.
Corner & L-Shape Units
Custom corner configurations and L-shaped shelving that maximise awkward spaces. Built by joining standard angles at 90Β° with gusset plates or direct bolting.
Workbench & Workstation
Slotted angle frames with solid worktops, tool pegboards, overhead shelving, and drawer mounts β creating ergonomic assembly, packing, and repair stations.
Multi-Tier System
Stack 2-3 levels of slotted angle shelving with walking platforms and stairs. Cost-effective alternative to mezzanine racking for small-parts picking operations.

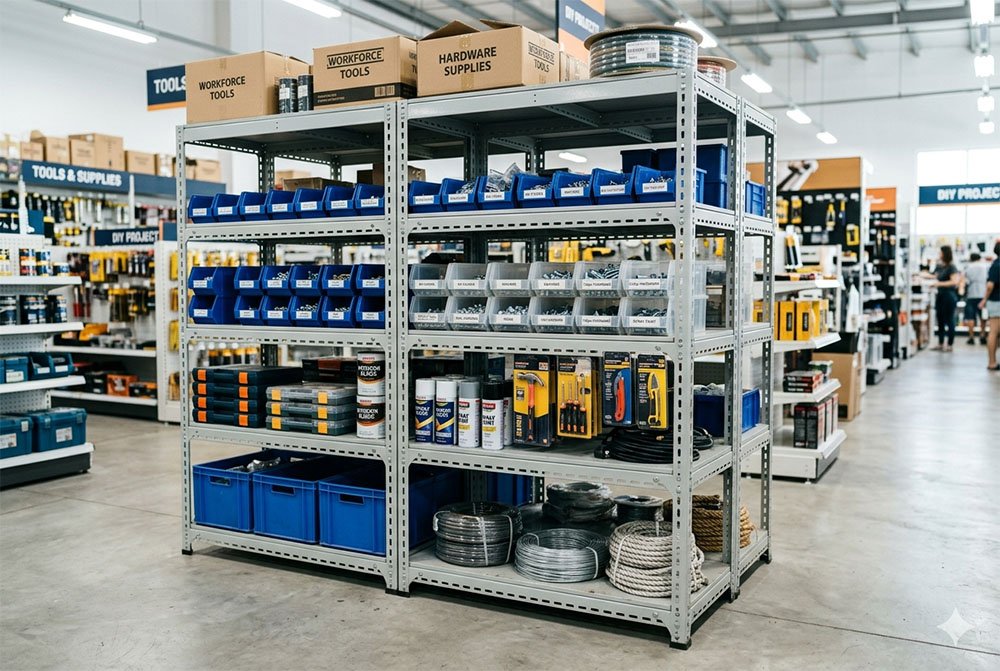

Display & Retail Rack
Open-frame display shelving for retail showrooms, garden centres, and trade shows. Angles powder-coated in brand colours with optional signage brackets and hooks.

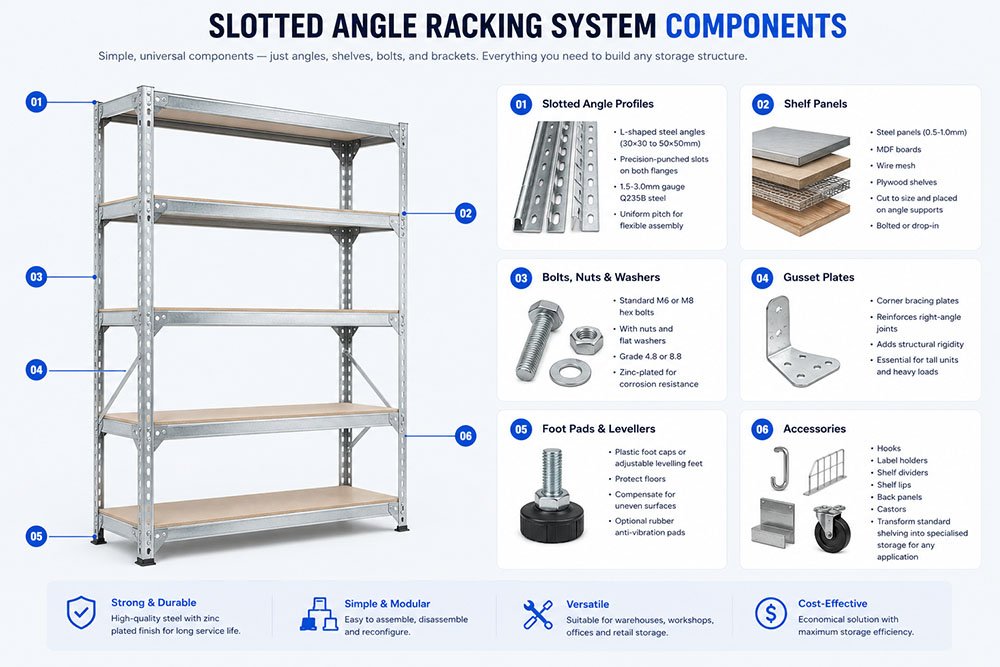

System Components
Simple, universal components β just angles, shelves, bolts, and brackets. Everything you need to build any storage structure.
Slotted Angle Profiles
L-shaped steel angles (30Γ30 to 50Γ50mm) with precision-punched slots on both flanges at uniform pitch. 1.5-3.0mm gauge Q235B steel.
Shelf Panels
Steel panels (0.5-1.0mm), MDF boards, wire mesh, or plywood shelves. Cut to size and placed on angle supports. Can be bolted or drop-in.
Bolts, Nuts & Washers
Standard M6 or M8 hex bolts with nuts and flat washers. Grade 4.8 or 8.8 depending on load requirements. Zinc-plated for corrosion resistance.
Gusset Plates
Corner bracing plates for reinforcing right-angle joints and adding structural rigidity. Essential for tall units and heavy-load configurations.
Foot Pads & Levellers
Plastic foot caps or adjustable levelling feet protect floors and compensate for uneven surfaces. Optional rubber anti-vibration pads.
Accessories
Hooks, label holders, dividers, shelf lips, back panels, and casters. Transform standard shelving into specialised storage for any application.
Technical Specifications
Complete engineering data for Gieantech slotted angle profiles β all dimensions and configurations fully customisable.
π Angle Profiles
βοΈ Material & Finish
ποΈ Load Capacity
π’ Logistics & Trade
Industry Applications
Slotted angle racks serve every industry where affordable, fully customisable steel storage is needed β from warehouses to workshops to retail.
Workshop & Garage
Tool storage, parts bins, workbench frames, and heavy component shelving for automotive, engineering, and repair workshops.

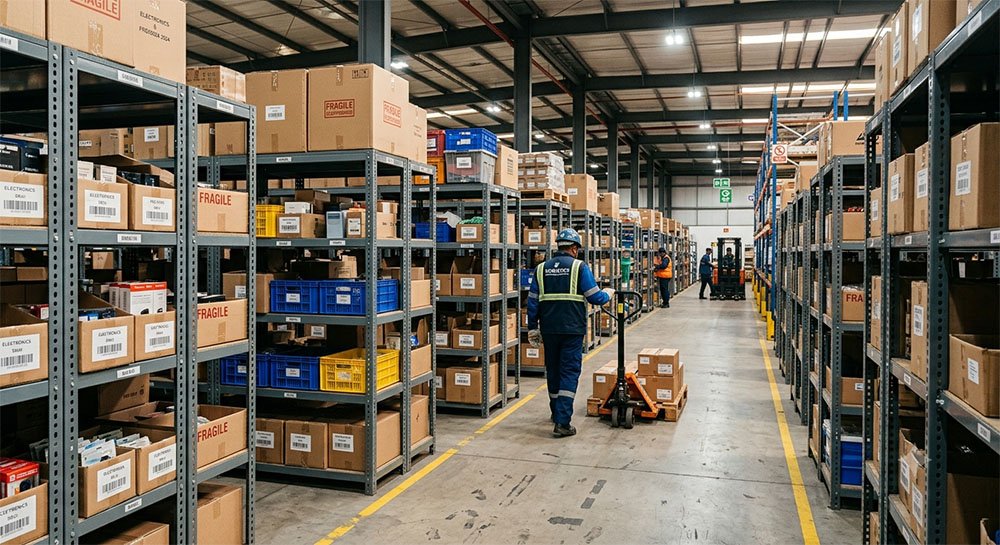

Warehouse & Stockroom
General-purpose shelving for cartons, bins, and loose items. Ideal for small-medium warehouses and back-of-house stockrooms.
Retail & Display
Open-frame display shelving for showrooms, garden centres, hardware stores, and trade exhibitions with brand-coloured angles.
Manufacturing
Line-side component racks, quality inspection stations, lean manufacturing cells, and custom jig/fixture frameworks.
Schools & Libraries
Supply closets, book shelving, art material storage, and science lab equipment racks for educational institutions.
Office & Archive
Document box storage, filing shelves, server room racks, and mail sorting stations with adjustable shelf heights.
Healthcare & Lab
Supply storage, specimen shelving, equipment racks, and cleanroom-compatible configurations with stainless hardware.
Home & Hobby
Garage organisation, pantry shelving, hobby workshop storage, and garden shed racks for residential DIY enthusiasts.
DIY Assembly in 5 Easy Steps
Build your slotted angle shelving with basic hand tools β a wrench, a hacksaw (for custom cuts), and the included bolts and nuts.
Measure & Cut
Measure your space and cut angles to the required lengths using a hacksaw, angle grinder, or band saw for exact custom fit.
Assemble Side Frames
Bolt two uprights and cross-members together to form two side frames. Tighten bolts finger-tight to allow adjustment.
Connect Front & Back
Join the two side frames with front and back horizontal angles at your desired shelf heights. Check square with a measuring tape.
Add Bracing & Shelves
Install diagonal bracing on the back face for stability. Drop or bolt shelf panels onto the angle supports at each level.
Tighten & Level
Final-tighten all bolts with a wrench. Attach foot pads or levellers. Your custom slotted angle rack is ready to load.
Slotted Angle vs Other Systems
See how slotted angle racking compares to alternative shelving systems across customisation, cost, and performance metrics.
| Feature | Slotted Angle | Boltless Rivet | Adjustable Racking | Wire Shelving | Pallet Racking |
|---|---|---|---|---|---|
| Customisation | βββββ Unlimited | ββ Fixed sizes | βββ Height only | ββ Fixed sizes | βββ Height only |
| Assembly Time | βββ 15-25 min | βββββ 5 min | ββββ 15 min | βββ 15-20 min | ββ 1-2 hrs |
| Load Capacity | βββ 100-500kg | βββ 100-700kg | ββββ 200-800kg | ββ 50-250kg | βββββ 500-4000kg |
| Cost per Unit | βββββ Lowest | ββββ Low | βββ Medium | βββ Medium | ββ High |
| Reusability | βββββ 100% | ββββ High | ββββ High | βββ Medium | βββ Medium |
| Shapes Available | β Any shape | β Rectangle only | β Rectangle only | β Rectangle only | β Rectangle only |
| Flat-Pack Density | βββββ 300-500/20GP | ββββ 200-400 | βββ 150-300 | ββ 100-200 | βββ 150-250 |
| Best For | Custom DIY projects | Fast hand storage | Medium-duty versatile | Food / lab / clean | Pallet-level heavy |
Order & Delivery Process
From inquiry to doorstep β a streamlined 6-step workflow to get your slotted angle racks from our factory to your storage floor.
Requirement Discussion
Share your storage needs β space dimensions, load requirements, desired configurations, and any custom features like workbench tops or display hooks.
Specification & Quotation
We recommend the optimal angle gauge, profile size, and accessories. A transparent quotation with volume pricing and shipping options is provided within 24 hours.
Sample Verification
For new customers or custom specs, we ship sample angle sets for your approval. Verify gauge, slot alignment, surface finish, and bolt fitment before production.
Production & QC
Mass production with multi-stage quality control β raw coil inspection, slitting tolerance, punching precision, powder coating adhesion, and dimensional accuracy.
Packing & Shipping
Angles bundled in straps or packed in cartons. Hardware packed separately. Up to 500 sets per 20GP container. Full export documentation and packing list provided.
Delivery & Support
Door-to-door delivery available worldwide. Assembly guide with each set. Video tutorials and technical support for DIY assembly and custom configurations.
Why Gieantech?
15+ years of precision steel manufacturing, factory-direct pricing, and a global distribution network that ensures quality and value.
Factory Direct Pricing
Buy directly from our Dongguan factory β no middlemen, no markups. Volume discounts for wholesale and distribution partners.
Full OEM & ODM
Custom angle profiles, slot patterns, colours, packaging, and branding. White-label service for distributors worldwide.
Precision-Punched Slots
CNC-punched slots with Β±0.3mm tolerance ensure perfect bolt alignment and consistent assembly across thousands of units.
57+ Countries Exported
Proven logistics to every continent β containerised shipping, full documentation, and customs clearance support included.
Maximum Container Density
Nested angle bundles fit 300-500 sets per 20GP β the highest container density of any industrial shelving product.
Sample Programme
Order sample angle sets before production. Evaluate gauge, slot precision, finish quality, and bolt fitment with zero obligation.
Certifications & Standards
Every Gieantech slotted angle profile meets international quality, safety, and manufacturing standards.
ISO 9001:2015
International quality management system covering raw material sourcing, manufacturing, and inspection.
CE Marking
European conformity declaration ensuring products meet EU health, safety, and environmental directives.
SGS Tested
Third-party material analysis, gauge verification, load testing, and surface coating adhesion testing.
AS 4084
Australian standard for steel storage racking β structural design and load capacity verification.
RoHS Compliant
Restriction of Hazardous Substances compliance for all coatings and surface treatment materials.
Frequently Asked Questions
Everything you need to know about slotted angle racks β from specifications and assembly to ordering and customisation.
Build Your Storage Your Way
Factory-direct slotted angle profiles with free samples, full OEM service, and the highest container density in the industry. Contact us today.
