Radio Shuttle Racking System
Combine the density of drive-in racking with the speed of automation. Gieantech’s radio shuttle systems use remote-controlled electric carts to move pallets inside deep-lane racks — eliminating forklift entry, boosting throughput by 40%, and achieving up to 80% space utilization.
What Is a Radio Shuttle Racking System?

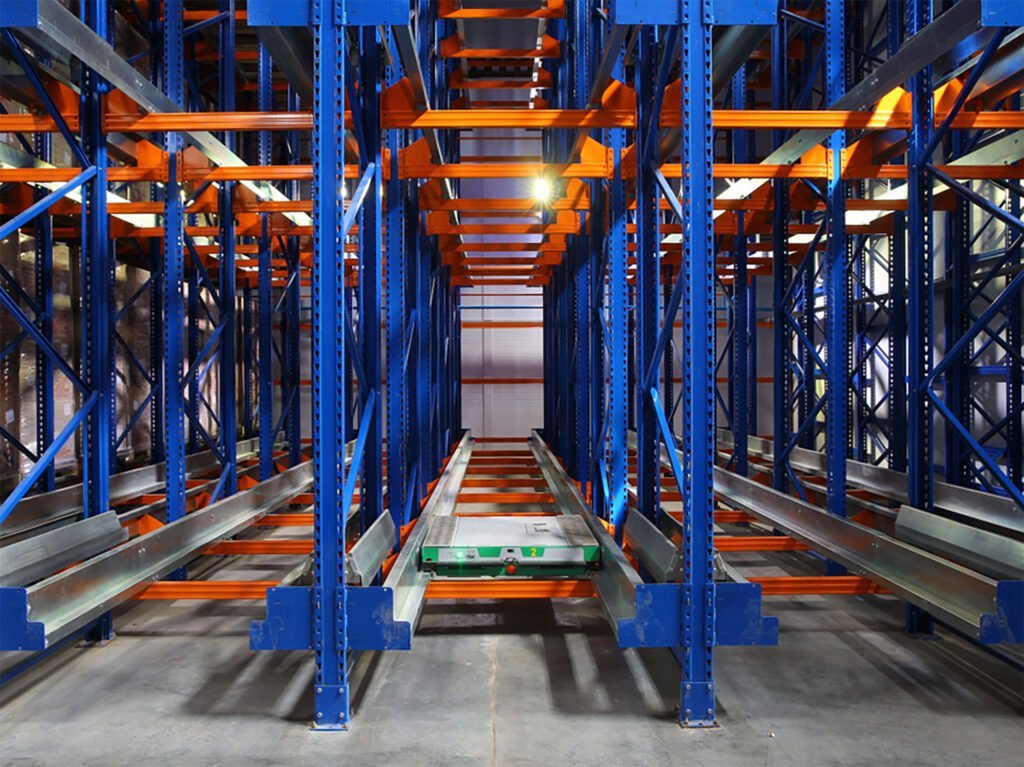

A radio shuttle racking system (also called shuttle pallet racking or pallet shuttle system) is a semi-automated, high-density warehouse storage solution that combines deep-lane racking structures with electrically powered shuttle carts. Unlike traditional drive-in racking where forklifts enter the lanes, the radio shuttle system uses a remote-controlled or Wi-Fi-connected motorized cart that travels along rails inside the rack tunnel to automatically transport, load, and retrieve pallets.
The forklift operator simply places a pallet at the lane entrance, and the shuttle cart automatically moves it to the first available position deep inside the rack — or retrieves the next pallet on command. This eliminates the need for forklifts to enter narrow lanes, significantly reducing product damage, improving safety, and increasing throughput by 30-40% compared to conventional drive-in systems.
Radio shuttle racking supports both LIFO (Last-In, First-Out) and FIFO (First-In, First-Out) inventory flows, making it ideal for cold storage, food & beverage, pharmaceutical, e-commerce, and manufacturing warehouses where space optimization and fast pallet cycling are critical.
Smart Storage, Superior Performance
Radio shuttle racking combines the density of drive-in storage with the intelligence of automation — delivering unmatched efficiency and safety.
Semi-Automated Operation
Remote-controlled shuttle carts handle all in-lane pallet movement. Forklifts never enter the lanes — reducing damage and boosting safety.
40% Higher Throughput
Shuttle speed up to 1.5 m/s loaded, with continuous pallet cycling. One operator can manage multiple shuttle carts simultaneously.
80% Space Utilization
Deep-lane storage up to 20+ pallets per lane eliminates aisles. Achieve double the capacity of selective racking in the same footprint.
Cold Storage Optimized
Minimize worker exposure to -30°C environments. Shuttle carts operate autonomously in freezer lanes while forklifts stay outside.
LIFO & FIFO Modes
Single-end loading for LIFO or dual-end operation for FIFO. Switch modes via remote control to match your inventory rotation needs.
WMS Integration
Wi-Fi / RF communication between shuttle carts and your warehouse management system for real-time inventory tracking and task optimization.
Lithium Battery Power
Industrial-grade 24V lithium-ion batteries with 8-hour runtime, fast charging (2h full), and 3,000+ cycle lifespan. Opportunity charging supported.
Built-In Safety Sensors
Obstacle detection, pallet presence sensors, end-of-rail stops, and emergency brake — ensuring safe autonomous operation inside every lane.
Radio Shuttle System Types
From standard 2-way shuttles to advanced 4-way multi-level systems — choose the configuration that matches your warehouse complexity.

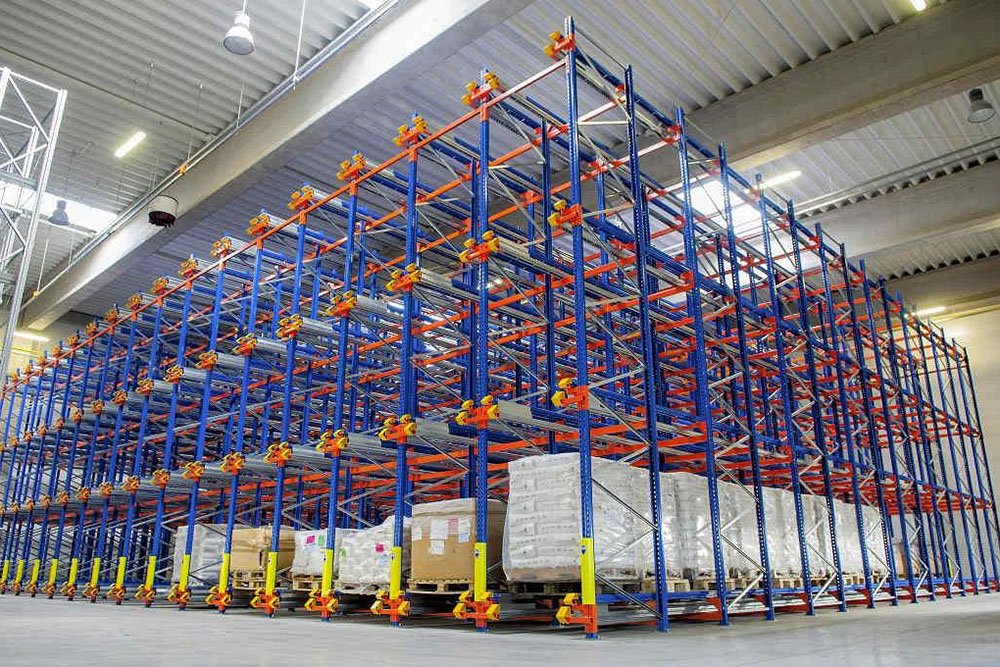

2-Way Radio Shuttle (Standard)
The classic configuration — shuttle carts move forward and backward along a single lane axis. Forklift places the cart on the rail at the lane entrance, and it automatically transports pallets to the deepest available position. Perfect for most warehouse applications.

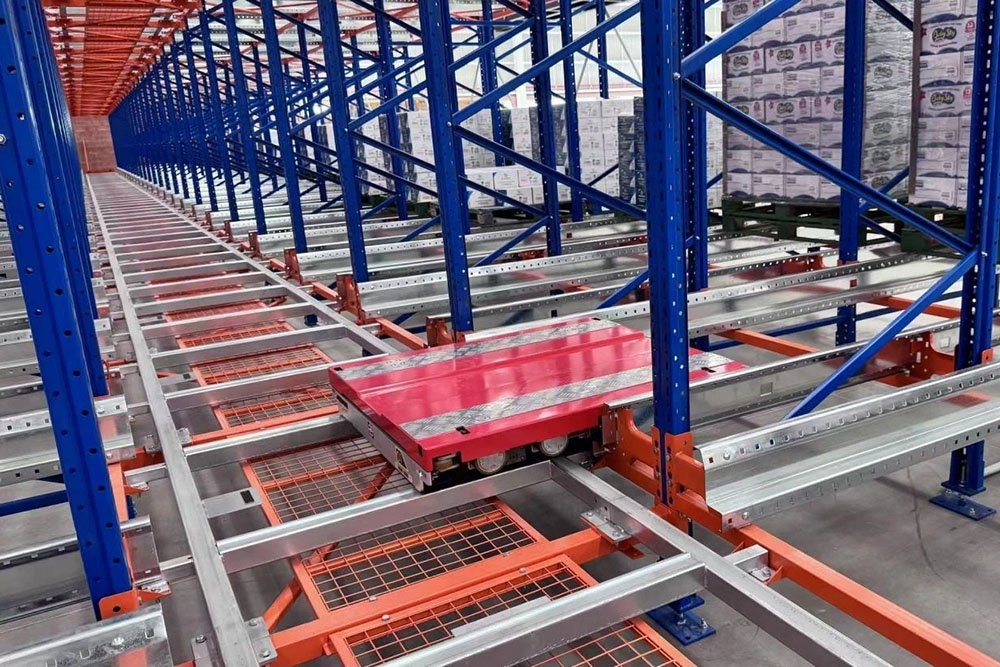

4-Way Radio Shuttle (Advanced)
Shuttle carts move in four directions — forward, backward, left, and right. Combined with a vertical lift, one cart serves multiple lanes and levels without forklift repositioning. Ideal for complex warehouses requiring maximum automation.

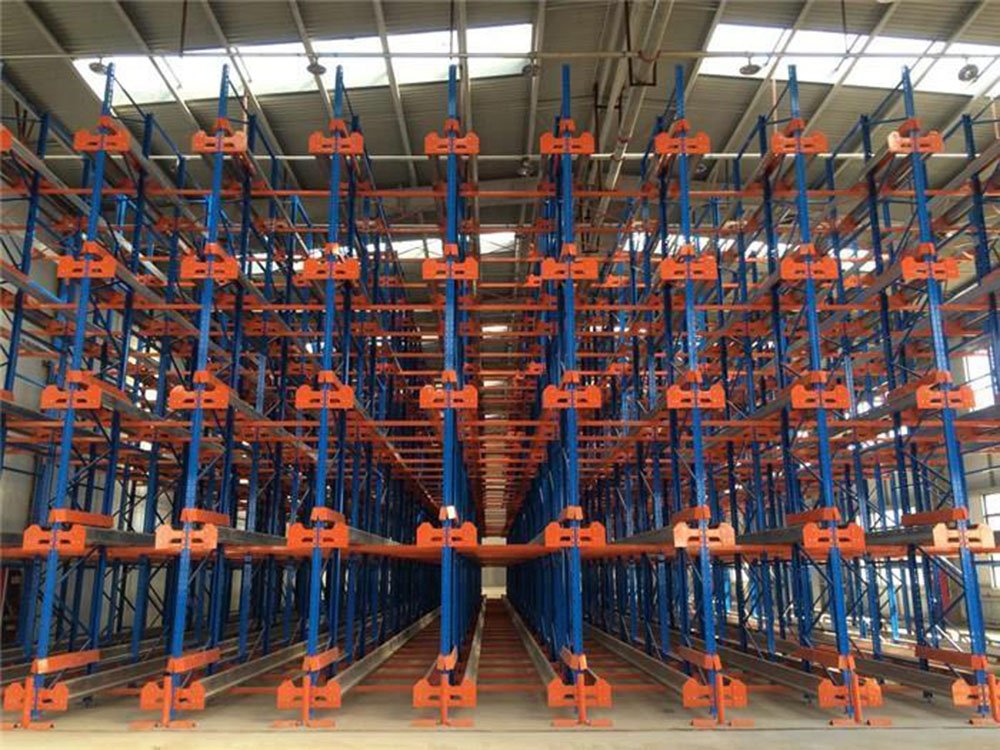

Cold Storage Shuttle System
Engineered for -30°C freezer environments. Galvanized steel racks, cold-resistant lithium batteries, heated electronics housings, and condensation-proof sensors. Operators stay outside the freezer — shuttle handles all in-lane operations.

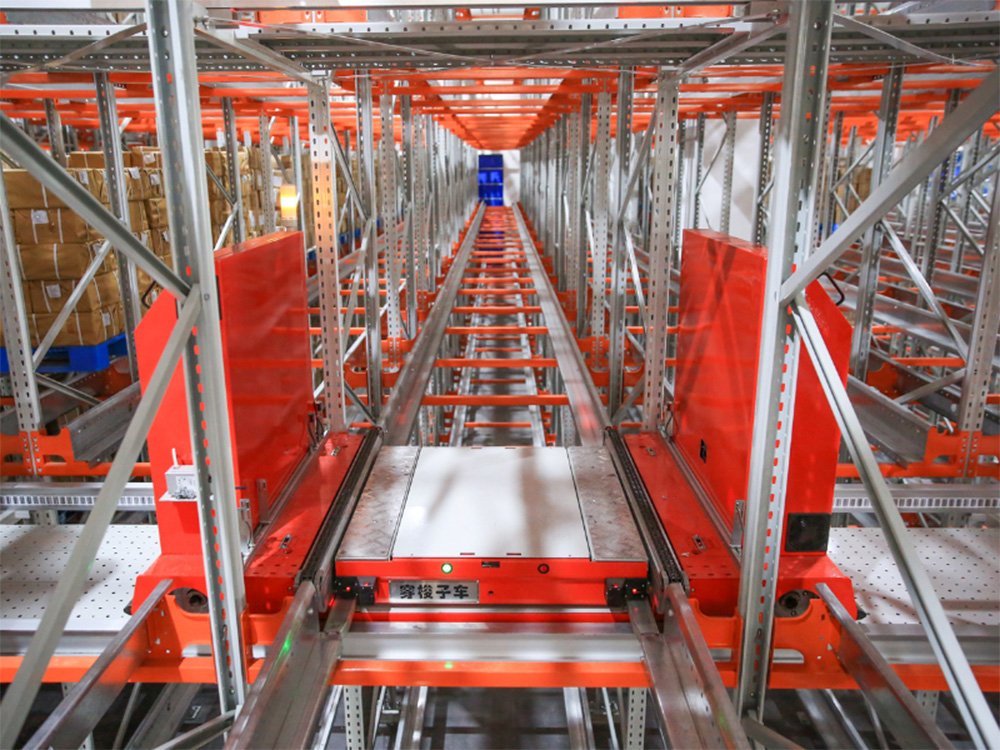

Mother-Child Shuttle System
A "mother" shuttle moves between lanes on a cross-aisle track, carrying a "child" shuttle that enters each lane. This multi-shuttle architecture dramatically increases throughput for large-scale distribution centers with high SKU density.
Core Components of the Shuttle System
A radio shuttle racking system integrates precision mechanical, electrical, and software components into a reliable automated storage solution.
Racking Structure
Heavy-duty Q235B steel uprights and beams forming deep-lane tunnels. Multi-level design with precision-welded guide rails for smooth shuttle travel up to 12m height.
Radio Shuttle Cart
Battery-powered motorized platform with built-in lifting mechanism. Travels at up to 1.5 m/s unloaded, carrying pallets up to 1,500 kg. Remote-controlled via handheld tablet or WMS.
Remote Control System
Handheld wireless controller or tablet interface for operators. Supports single-pallet, multi-pallet, auto-fill, and auto-retrieve modes with real-time status feedback.
Lithium Battery Pack
Industrial-grade 24V/80Ah lithium-ion battery with BMS protection. 8-hour continuous runtime, 2-hour fast charge, and 3,000+ charge cycles. Opportunity charging ready.
Sensors & Safety
Pallet detection sensors, obstacle avoidance, end-of-rail limit switches, emergency stop button, and anti-collision bumpers. Full sensor suite for autonomous safe operation.
Vertical Lift (4-Way)
For 4-way shuttle systems — a dedicated vertical conveyor that transports the shuttle cart between rack levels, enabling one cart to serve all levels and lanes automatically.
Technical Data & Specifications
Complete engineering specifications for Gieantech radio shuttle racking systems.
Racking Structure
Shuttle Cart
Safety & Control
Logistics & Trade
Trusted Across High-Volume Industries
Radio shuttle racking delivers measurable ROI wherever dense storage, fast throughput, and reduced labor costs are business priorities.
Cold Chain & Freezer
Maximize cubic space in costly refrigerated facilities. Shuttle carts operate autonomously at -30°C — workers stay safely outside.
Food & Beverage
High-volume palletized beverages, dairy, and packaged food. FIFO shuttle mode ensures strict date rotation for perishable inventory.
E-Commerce & 3PL
Handle seasonal order surges with rapid pallet cycling. One operator controlling multiple shuttles replaces entire forklift fleets.
Pharmaceutical
GMP-compliant storage with precise inventory tracking. FIFO ensures expiration date compliance; WMS integration enables full traceability.
Manufacturing
Raw material and WIP buffer storage. Shuttle systems bridge production lines and shipping docks with automated pallet sequencing.
Automotive
JIT component staging for assembly lines. Shuttle carts deliver precise pallet sequences on demand, reducing line-side inventory.
Retail Distribution
Pre-stage full pallets for store replenishment. High-density storage meets rapid dispatch during peak promotional seasons.
Chemical & Hazmat
Segregated storage zones with controlled access. Shuttle automation keeps operators away from hazardous materials during pallet handling.
Radio Shuttle vs. Other Storage Systems
See how radio shuttle racking compares to alternative high-density and conventional storage solutions.
| Feature | Radio Shuttle | Drive-In Racking | Pallet Flow | Selective Racking |
|---|---|---|---|---|
| Automation Level | Semi-Automated (shuttle cart) | Manual (forklift enters) | Gravity-assisted | Fully Manual |
| Space Utilization | Up to 80% | Up to 85% | 65-75% | 40-50% |
| Throughput Speed | Very High (40% faster) | Low (forklift congestion) | Medium | Medium |
| Lane Depth | Up to 40 m (20+ pallets) | 6-12 pallets | 3-10 pallets | 1 pallet |
| Forklift Enters Lane | No (safer) | Yes (risk of damage) | No | Aisle only |
| Inventory Flow | LIFO & FIFO | LIFO only | FIFO only | Random access |
| Cold Storage | Excellent (no worker exposure) | Good (but workers enter) | Good | Poor (too many aisles) |
| ROI Period | 1-2 years | 2-3 years | 3-4 years | 3-5 years |
From Consultation to Commissioning in 6 Steps
Our end-to-end project workflow ensures your radio shuttle system is designed, manufactured, and commissioned on time.
Needs Assessment
Share warehouse dimensions, pallet specs, throughput targets, SKU profile, temperature requirements, and existing forklift fleet details.
Layout & System Design
Engineers create AutoCAD layouts with lane depths, shuttle quantities, level configurations, charging station placement, and traffic flow optimization.
3D Rendering & ROI
Photorealistic 3D warehouse renderings plus detailed ROI analysis comparing shuttle system cost against current operations — for management approval.
Manufacturing & Testing
Racking and shuttle carts manufactured in parallel. Each shuttle undergoes factory acceptance testing (FAT) — load test, speed calibration, sensor verification.
Shipping & Installation
CKD racking on steel pallets + individually crated shuttle carts. On-site installation by our certified teams or your local crew with our remote guidance.
Commissioning & Training
System commissioning with WMS integration, operator training (remote control, maintenance, troubleshooting), and acceptance sign-off with performance KPIs.
Your Trusted Shuttle Racking Partner
16+ years manufacturing experience and integrated rack + shuttle production under one roof — delivering complete turnkey systems worldwide.
Integrated Manufacturing
Racking and shuttle carts produced in our own factories — single-source supply, unified quality control, and no compatibility issues between components.
Free System Design
Complete warehouse layout, structural calculations, shuttle quantity optimization, and 3D renderings — all complimentary before you place an order.
57+ Countries Served
Proven export experience shipping shuttle racking systems to cold chain facilities and distribution centers across six continents.
WMS Integration Support
Our software team provides API documentation, communication protocols, and on-site commissioning support to connect shuttle carts with your WMS/ERP system.
Remote Diagnostics
Wi-Fi-connected shuttles support remote troubleshooting and firmware updates. Our engineers diagnose issues in real-time without on-site visits.
Lifetime Technical Support
24h response for spare parts, maintenance guidance, and system expansion planning. We're your long-term automation partner, not just a supplier.
International Safety & Quality Standards
Every radio shuttle racking system meets the world’s most demanding industrial safety and quality certifications.
ISO 9001:2015
Quality management
CE Marking
EU safety conformity
TUV Certified
Independent testing
AS 4084
Racking standard
SGS Tested
Material verification
Frequently Asked Questions
Everything you need to know about radio shuttle racking systems — answered by our engineering team.
Ready to Automate Your Warehouse Storage?
Get a complimentary warehouse layout, shuttle system sizing, ROI analysis, and factory-direct quote. Our engineering team responds within 24 hours.
