Mold Racking System
Purpose-built heavy-duty racking for storing, organizing, and protecting high-value molds. Featuring drawer-style slide-out trays with up to 3,000 kg load capacity per tray — enabling safe forklift and crane access, instant mold retrieval, and complete inventory visibility.
3,000 kg
Max Load / Tray
100%
Slide-Out Access
5 Tiers
Max Storage Levels
What Is a Mold Racking System?
A mold racking system — also known as mould rack, die storage rack, or mold finishing rack — is a specialized heavy-duty storage system designed specifically for storing, organizing, and protecting high-value molds used in injection molding, die casting, stamping, and blow molding operations.
Unlike standard pallet racking, mold racks feature pull-out drawer trays (slide-out shelves) that extend fully to allow overhead crane or forklift access to individual molds — without disturbing adjacent inventory. Each tray is engineered to support 500 kg to 3,000 kg and slides on precision roller bearings or heavy-duty linear guides.
Modern mold racks include anti-tip safety interlocks (only one tray opens at a time), rust-resistant surface treatment, and optional RFID/barcode tracking integration for complete mold lifecycle management. Available in full-open, half-open, and enclosed drawer configurations with 2 to 5 tiers per unit.
At Gieantech, our mold racks are manufactured from Q235B / Q345B structural steel, with a 3-step anti-corrosion process (pickling → phosphating → powder coating), and designed to meet ISO 9001, CE, and SGS standards. We supply to injection molding factories, automotive OEMs, and precision tooling workshops across 57+ countries.
3,000 kg
Max load per tray
2–5
Storage tiers
100%
Full slide-out access
Anti-Tip
Safety interlock system
RFID Ready
Smart tracking optional
3-Step
Anti-corrosion coating
Mold Storage Challenges You Face Daily
If your molds are stored on the floor, stacked haphazardly, or crammed onto unsuitable shelving — you’re losing time, money, and risking serious damage.
Floor Clutter & Chaos
Molds stored on the floor or in corners waste valuable factory space, create safety hazards, and make inventory impossible to manage systematically.
Slow Retrieval & Downtime
Searching for the right mold among hundreds of disorganized units causes machine downtime, missed production schedules, and delayed customer deliveries.
Rust, Dust & Damage
Poor storage environments — humidity, dust, no oil protection — lead to mold corrosion, surface damage, and shortened lifespan of high-value tooling assets.
High-Value Asset Loss
A single mold can cost tens of thousands of dollars. Misplacement, damage from improper stacking, or "missing mold" incidents result in costly re-manufacturing.
Safety Risks
Heavy molds (often 500–3,000 kg) pose serious injury hazards when stored on unstable surfaces, improperly stacked, or handled without proper equipment.
No Traceability
Without systematic numbering, location tracking, or maintenance logs, mold history is lost during staff turnover — making audits and quality compliance impossible.
Why Choose Our Mold Racking System?
Engineered to solve every mold storage challenge — protecting your highest-value manufacturing assets while maximizing operational efficiency.
Full Slide-Out Trays
Every tray extends 100% for complete overhead access. Load and unload molds with cranes or forklifts without moving adjacent items.
Anti-Tip Safety Interlock
Mechanical interlock allows only one tray to open at a time — preventing the rack from tipping under eccentric load. Critical for workplace safety.
3,000 kg / Tray Capacity
Heavy-gauge steel trays on precision roller bearings support the heaviest injection molds, die-cast tooling, and stamping dies.
Maximize Vertical Space
Stack molds in 2–5 tiers instead of floor storage. Recover up to 80% of wasted floor space in your mold workshop.
RFID / Barcode Ready
Optional RFID tags and barcode labels per tray slot enable digital mold lifecycle tracking — usage history, maintenance schedules, and location mapping.
Anti-Corrosion Protection
3-step surface treatment (pickling → phosphating → powder coating) plus optional dehumidifier integration to prevent mold rust damage.
Organized Classification
Dedicated slots with clear labeling — organize by client, product line, mold type, or status (in production / maintenance / archived).
Faster Mold Changeover
Locate and retrieve any mold in minutes instead of hours. Reduce machine downtime and accelerate production scheduling.
Mold Racking Types
We offer multiple configurations to match your mold sizes, weights, and workflow requirements.

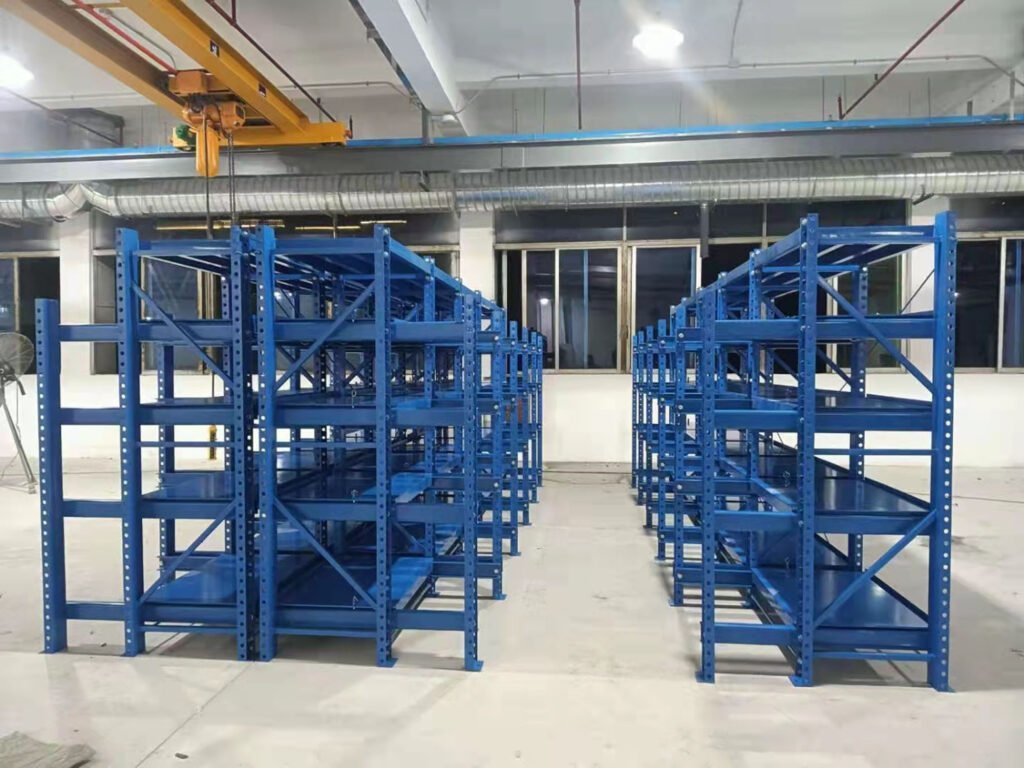

Best SellerFull-Open Mold Rack
Trays extend 100% out of the frame for complete top and side access. Ideal for overhead crane loading of large injection molds and die-cast tooling.
CompactHalf-Open Mold Rack
Trays extend 50–75% for quick visual inspection and forklift access. More compact footprint than full-open — ideal for space-constrained workshops.
Heavy DutyDrawer-Type Mold Rack
Enclosed drawer design with heavy-duty linear guides. Maximum protection against dust, humidity, and accidental impact. Anti-tip interlock standard.
High CapacityMulti-Tier Mold Rack
4–5 tier configurations for high-density mold storage. Optimized for facilities with large mold inventories. Ground tier can be left open for oversized tooling.
Anatomy of a Mold Racking System
Every component is precision-engineered to safely support, access, and protect heavy-value molds.
Upright Frame
Heavy-gauge Q235B/Q345B welded steel columns (2.5–3.0mm thick) forming the main structural skeleton. Designed for eccentric loads from extended trays.
Slide-Out Trays
Steel platform trays with precision roller bearing guides for smooth, effortless extension. Available in full-open (100%) or half-open (50–75%) configurations.
Anti-Tip Interlock
Mechanical safety device ensuring only one tray opens at a time. Prevents rack tipping from eccentric loading — a critical safety feature for heavy molds.
Guide Rails & Rollers
Heavy-duty linear guide systems with steel rollers enabling smooth tray movement even under 3,000 kg loads. Self-lubricating for low maintenance.
Limit Stops & Locks
End-of-travel limit stops prevent trays from sliding out completely. Manual locking pins secure trays in closed position during transport and seismic events.
Floor Anchoring System
Heavy-gauge base plates with M16 expansion anchors secure the rack to the factory floor. Essential for stability when trays are fully extended under load.
Detailed Engineering Specifications
Precision-manufactured with structural-grade steel, designed for the unique demands of heavy mold storage and retrieval.
Structural Dimensions
Material & Surface
Load & Safety
Logistics & Trade
Built for Every Manufacturing Sector
From injection molding to die-casting and stamping — mold racks are essential wherever high-value tooling demands organized, safe, and accessible storage.
Injection Molding
Plastic injection molds for consumer products, packaging, medical devices, and electronics enclosures
Automotive
Stamping dies, body panel molds, bumper tooling, interior trim molds, and engine component dies
Die Casting
Aluminum and zinc die-cast tooling for automotive parts, hardware, consumer electronics, and lighting
Metal Stamping
Progressive dies, transfer dies, and compound dies for sheet metal processing in appliances and hardware
Electronics
Precision molds for connectors, IC packaging, PCB fixtures, phone casings, and semiconductor components
Medical & Pharma
Clean-room compatible molds for syringes, surgical instruments, drug delivery devices, and lab consumables
Home Appliances
Large-format molds for washing machine drums, refrigerator liners, air conditioner housings, and cookware
Consumer Goods
Blow molds for bottles, rotational molds for toys, rubber molds for footwear, and thermoforming tooling
Mold Rack vs. Other Storage Methods
See why purpose-built mold racking outperforms traditional storage methods across every critical metric.
| Feature | Mold Rack | Floor Stacking | Standard Shelving | Pallet Racking |
|---|---|---|---|---|
| Heavy Mold Support | Up to 3,000 kg/tray | Varies (risk) | 100-300 kg/shelf | Up to 4,000 kg/beam |
| Individual Access | 100% slide-out per mold | Top only | Front only | Full bay only |
| Mold Protection | Enclosed / padded trays | Exposed to damage | Limited | Open exposure |
| Anti-Tip Safety | Mechanical interlock | N/A | N/A | N/A |
| Space Utilization | Vertical stacking (5 tiers) | 1-2 layers max | Light items only | Good but oversized |
| Retrieval Speed | Minutes (direct) | Hours (search + move) | Limited by weight | Minutes |
| Inventory Tracking | RFID / barcode ready | Manual paper logs | Manual | Basic labels |
| Best For | Molds & dies | Temporary overflow | Light parts | Palletized goods |
From Consultation to Delivery in 6 Steps
Our end-to-end workflow ensures your mold rack is perfectly sized, manufactured, and delivered on schedule.
Mold Inventory Audit
Share your mold list — types, sizes, weights, quantities, and workflow (frequency of use, crane vs. forklift).
Custom Layout Design
Our engineers design an optimized mold room layout with CAD floor plans — rack placement, aisle widths, and crane clearance.
3D Rendering
Receive photorealistic 3D renderings of your mold storage area for management presentations and final approval.
Prototype & Testing
For first orders, we produce a sample unit for physical load testing, tray operation verification, and quality sign-off.
Mass Production & QC
Batch manufacturing with rigorous inspection at every stage — welding, assembly, guide rail testing, and surface finish.
Secure Packing & Shipping
Fully assembled or CKD flat-pack options. Wrapped in protective materials on steel pallets with installation manuals.
Your Trusted Mold Storage Partner
A decade of manufacturing experience and 10+ partner factories delivering professional mold racking solutions worldwide.
Factory-Direct Pricing
No middlemen — deal directly with our manufacturing base in Dongguan. Save 15-30% versus trading company quotes on mold racks.
Free CAD & 3D Design
We create professional mold room layouts with AutoCAD floor plans, tray configuration diagrams, and 3D renderings — completely free.
57+ Countries Served
Proven export experience shipping mold racks to injection molding factories in North America, Europe, SEA, Middle East, and Africa.
100% Customizable
Every rack is custom-built to your mold dimensions, weights, and facility layout. No standard-size compromises — purpose-built for your tooling.
Premium Surface Finish
3-step anti-corrosion (pickling → phosphating → powder coat, 60-80μm). Passes 500-hour salt spray test for long-term durability.
24h Professional Response
Dedicated project manager for every order. Technical questions, drawing revisions, and logistics updates — all within 24 hours.
