Medium Duty Racking System
The versatile industrial storage solution bridging the gap between light shelving and heavy pallet racks — supporting 200-800kg per level with tool-free assembly and infinite adjustability for your growing inventory.

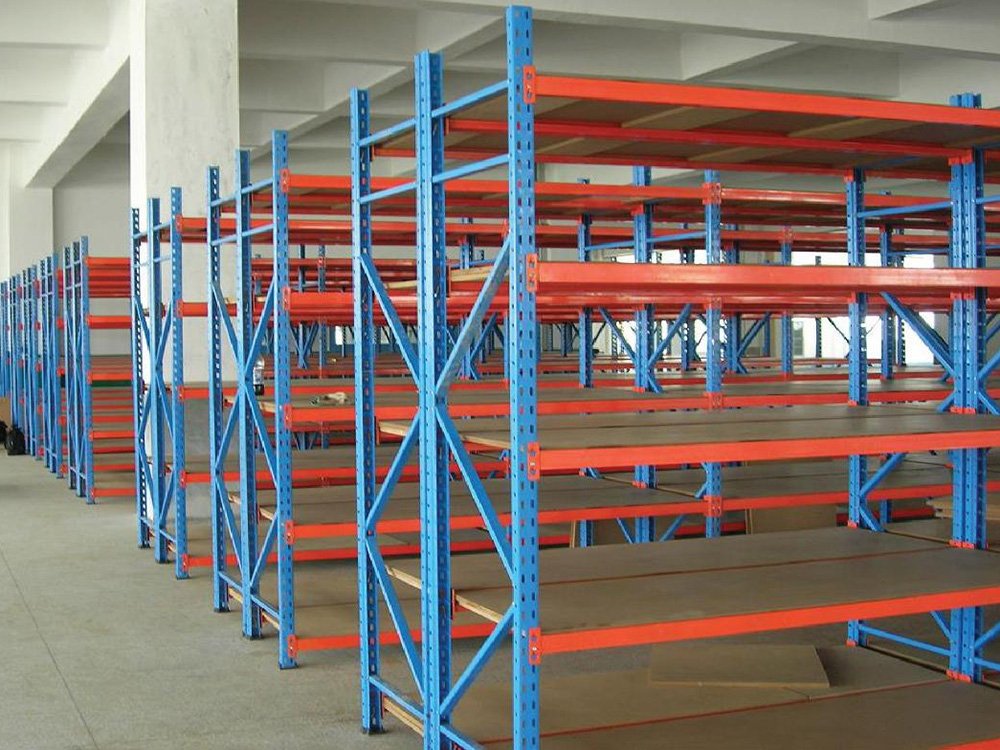

What Is Medium Duty Racking?
The mid-range industrial shelving solution designed for hand-loaded cartons and bins.
Medium duty racking, also known as longspan shelving, is a modular storage system engineered to carry significant hand-loaded weights ranging from 200 kg to 800 kg per level. It fills the critical gap between lightweight boltless shelving and heavy-duty pallet racking, providing industrial-grade durability at a competitive price point.
800 kg Capacity
Handles heavy industrial bins and hand-loaded goods safely
50mm Pitch
Reposition beam levels in minutes without tools or bolts
3m Wide Spans
Wide open shelving for bulky items and oversized cartons
Tool-Free Build
Simple clip-in assembly allows for rapid facility deployment
Common Storage Challenges
Light Shelving Weakness
Standard shelves sag or buckle under heavy industrial items, risking safety.
✅ 200-800kg rated steel framesPallet Rack Over-Spend
Heavy pallet racking is overkill and overpriced for hand-picked cartons.
✅ Right-sized capacity at 40% less costWasted Vertical Height
Fixed-height levels create large gaps, wasting 30% of your cubic space.
✅ 50mm pitch adjustment pitchComplex Installation
Traditional racking takes hours per bay and needs certified installers.
✅ 15-min clip-in assembly by anyoneStatic Rigid Layouts
Most systems are hard to reconfigure as your inventory sizes evolve.
✅ Tool-free beam height repositioningLimited Decking Options
Systems with only one shelf type force compromises on airflow or safety.
✅ Steel, MDF, Mesh, Plywood optionsEngineered for Performance
75mm Pitch Adjust
Fine-tune levels to match your SKU heights exactly.
Clip-In Lock
Positive-locking beams ensure maximum rigidity.
Powder Coating
High-durability RAL finish for scratch resistance.
800kg Rating
Roll-formed steel engineered for industrial loads.
Modular Design
Connect starter and add-on bays to save cost.
Multi-Decking
Compatible with Steel, MDF, Mesh, and more.
3m Span Width
Wide open bays for bulky and oversized goods.
Safety Pins
Spring clips prevent accidental beam lift-out.
System Configurations

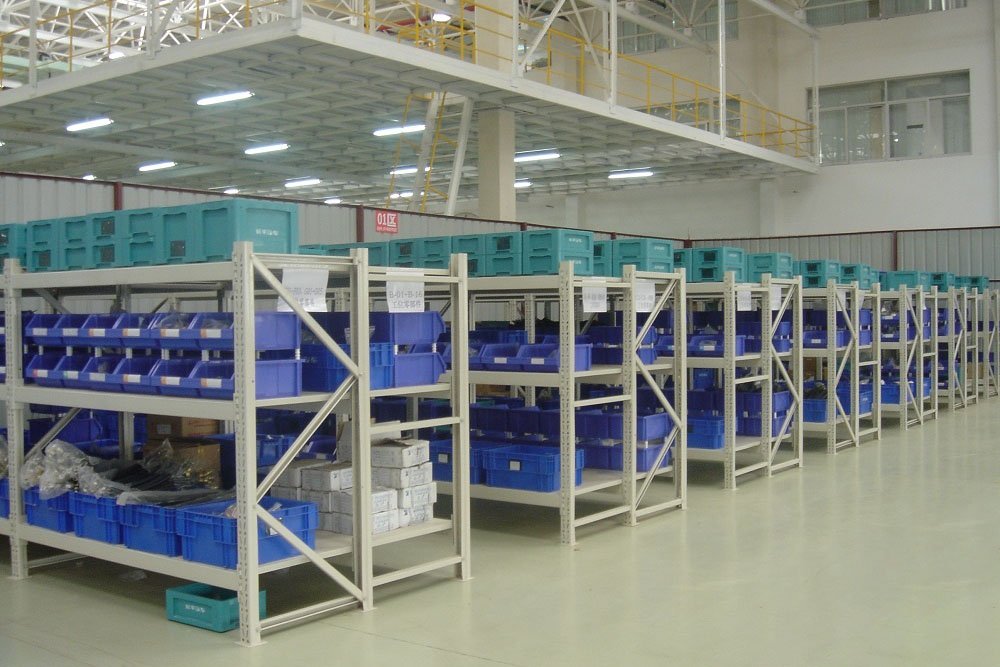

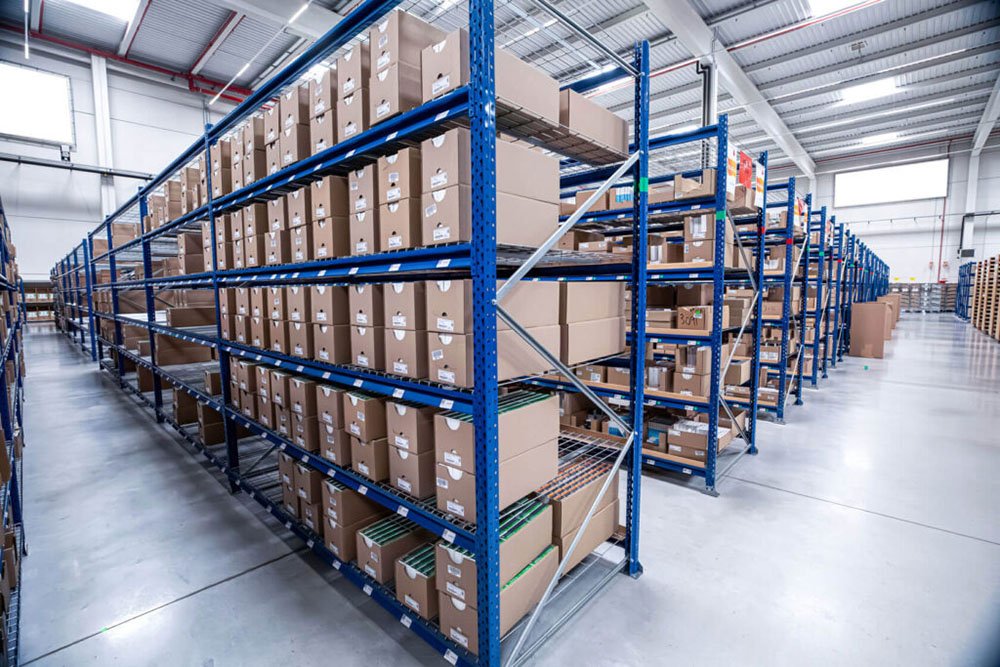

Standard Longspan
P-profile beams with steel or MDF panels. 200-500kg per level.

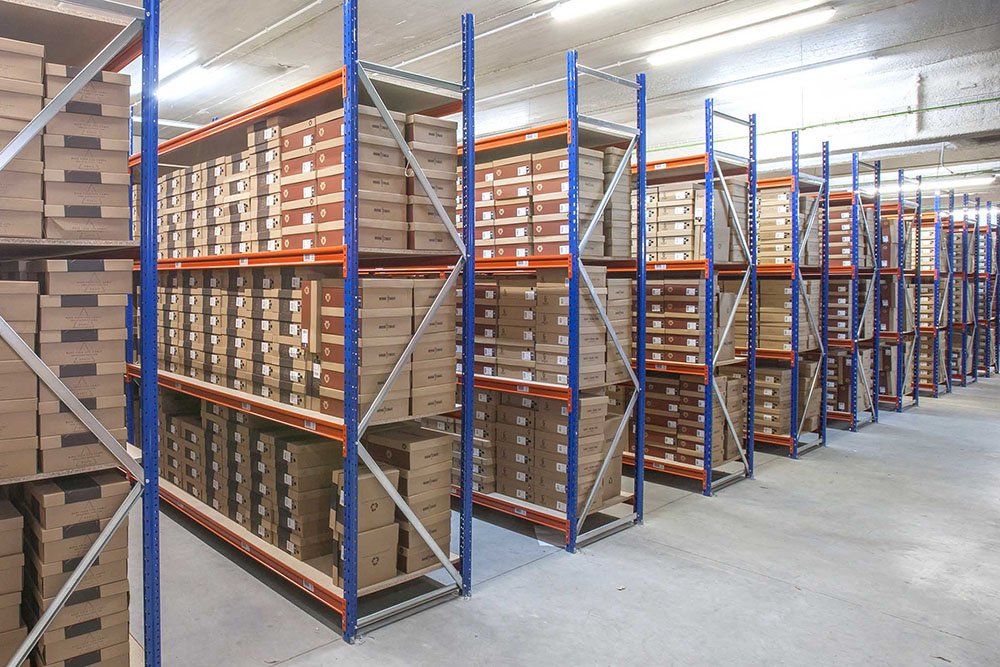

Industrial Heavy-Medium
Reinforced uprights and step-beams for loads up to 800kg.
Multi-Tier Platform
Stack 2-3 levels with walkways to triple picking floor space.
Clip-In Panel Shelving
Flush surface shelving for office, pharmaceutical and retail use.
Wire Mesh Deck System
Open grid decking for maximum air circulation and fire safety.

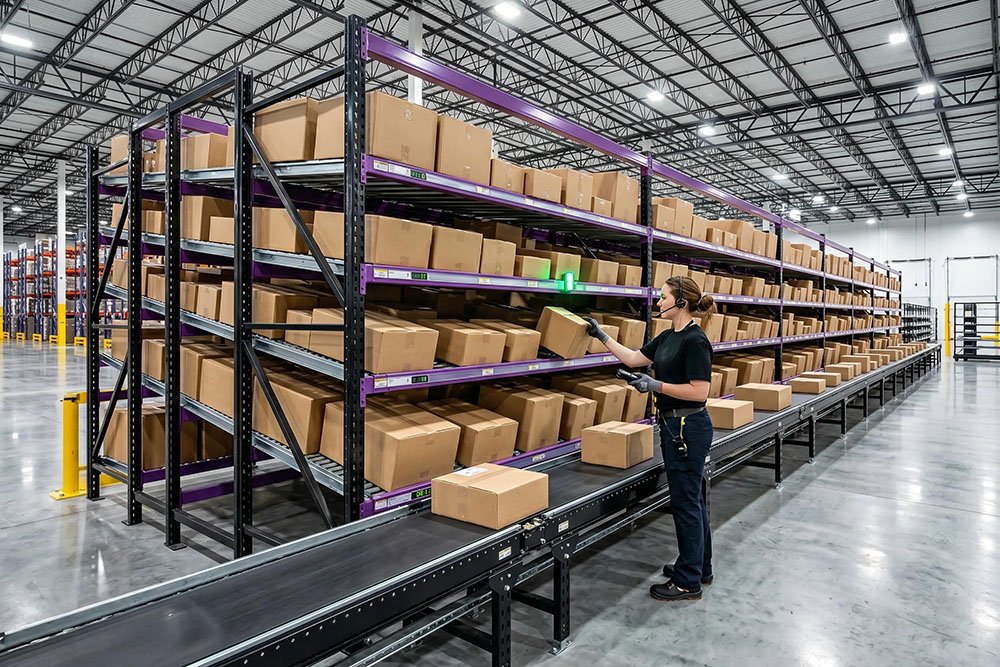

Carton Flow Longspan
Integrated roller tracks for high-frequency FIFO picking.

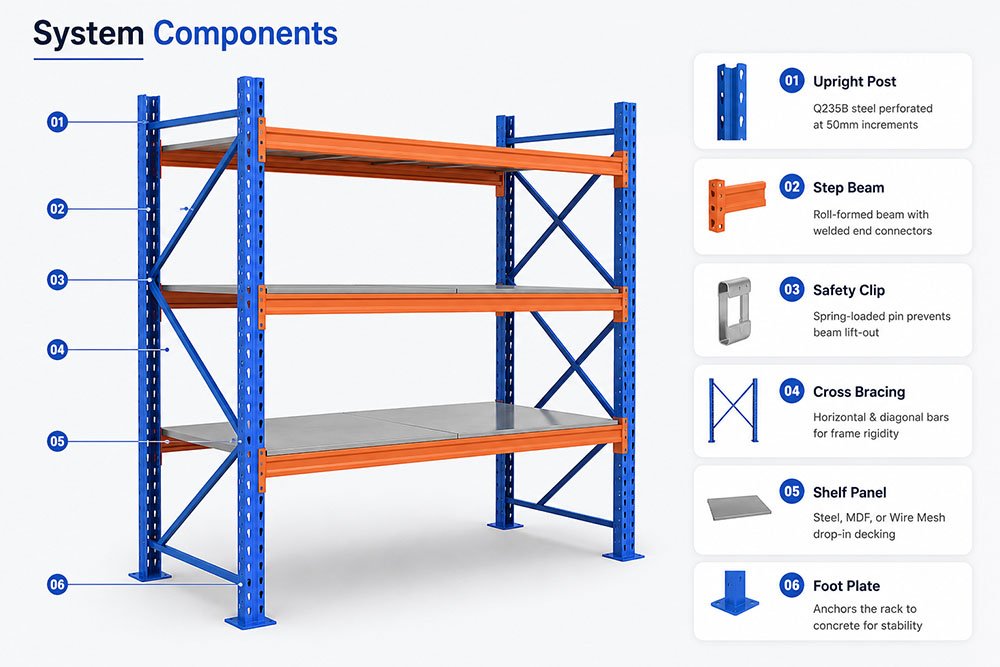

System Components
Upright Post
Q235B steel perforated at 50mm increments
Step Beam
Roll-formed beam with welded end connectors
Safety Clip
Spring-loaded pin prevents beam lift-out
Cross Bracing
Horizontal & diagonal bars for frame rigidity
Shelf Panel
Steel, MDF, or Wire Mesh drop-in decking
Foot Plate
Anchors the rack to concrete for stability
Technical Specifications
📏 Dimensions
⚙️ Material
🏋️ Capacity
🚢 Logistics
Trusted Across High-Volume Industries
Medium-duty racking is an ideal storage solution for storing medium-weight products that require both manual storage and high accessibility.
Healthcare
Organise medical supplies, consumables, and equipment with precision. Smooth powder-coated finishes are easy to wipe down, supporting hygiene compliance across clinical, hospital, and pharmaceutical storage environments.
Food & Beverage
Store ambient dry goods, packaged foods, and beverages in compliance with food-safety standards. Open-frame construction promotes air circulation while wire-mesh decking ensures effective sprinkler system penetration.
3PL & Logistics
Ideal for pick-and-pack zones requiring fast access to a wide range of SKUs. Medium duty racking maximises vertical space while keeping every product within easy reach for order fulfilment teams working at high throughput.
Office & Archive
Manage document boxes, binders, and media archives efficiently across multiple shelf tiers. The boltless design allows quick reconfiguration as filing needs grow or departmental requirements evolve over time.
Manufacturing
Support lean production with line-side component buffers that place raw materials and sub-assemblies exactly where workers need them, reducing walking distances and improving assembly line throughput.
Automotive Parts
Handle sequenced parts storage for dealerships, repair centres, and assembly plants. Long-span beams accommodate bulky items such as bumpers and exhaust systems without sacrificing accessibility or picking speed.
Retail & Wholesale
Keep back-of-house storage organised and efficient. Adjustable shelf heights accommodate seasonal product changes, allowing retail staff to replenish shop floors rapidly without disrupting daily operations.
Workshop & Garage
Store tools, spare parts, and maintenance supplies in a structured, easy-to-audit system. Robust shelf panels handle uneven loads while keeping the workspace clutter-free, organised, and safe for daily use.
15-Min Assembly
Frames
Position the two upright frames.
Beams
Clip beams into upright slots.
Pins
Insert safety clips into beam ends.
Bracing
Install back bracing if required.
Decking
Drop panels onto beam supports.
System Comparison
| Feature | Medium Duty | Boltless | Pallet Rack |
|---|---|---|---|
| Capacity | 200-800kg | 100-300kg | 500-4000kg |
| Adjustability | 50mm Pitch | 50mm Pitch | 50/75mm Pitch |
| Investment | $$ Medium-Low | $ Lowest | $$$$ High |
| Loading | Hand / Stack | Hand Only | Forklift |
Implementation Process
Needs Analysis
Consultation to assess weights and dimensions.
Layout Design
Free 3D renderings and CAD drawings.
Engineering
Load and seismic calculation verification.
Manufacturing
Roll-forming and welding in Dongguan.
Logistics
Flat-pack shipping worldwide.
Handover
Installation support and safety sign-off.
Why Gieantech?
Factory Direct
Best ex-factory pricing with no middlemen.
Free Design
Complimentary 3D layout & CAD within 48h.
Multi-Stage QC
Verification from raw steel to finish.
Global Export
Projects delivered to 57+ countries.
10Yr Warranty
Industry-leading structural guarantee.
OEM/ODM
Custom dimensions and brand labelling.
International Safety & Quality Standards
All our medium-duty racking systems comply with the world’s most stringent industrial safety and quality certifications.
ISO 9001
CE Mark
AS 4084
SGS
FEM
Frequently Asked Questions
Medium duty racking supports 200-800kg per level.
No, it is a tool-free clip-in system. 15 mins per bay.
Get Your Medium Duty Racking Quote
Receive a free warehouse layout and factory-direct quote for your medium-duty racking project. Our engineering team responds within 24 hours.
