Industrial Pallet Racking System
Purpose-built for high-capacity warehousing and distribution environments. Our industrial pallet racking systems are engineered to handle loads up to 4,000 kg per beam level — delivering 100% pallet selectivity, rapid forklift access, and seamless WMS integration for demanding commercial and industrial operations worldwide.
4,000 kg
Max Load / Level
12 m
Max Height
100%
Pallet Selectivity
57+
Countries Served

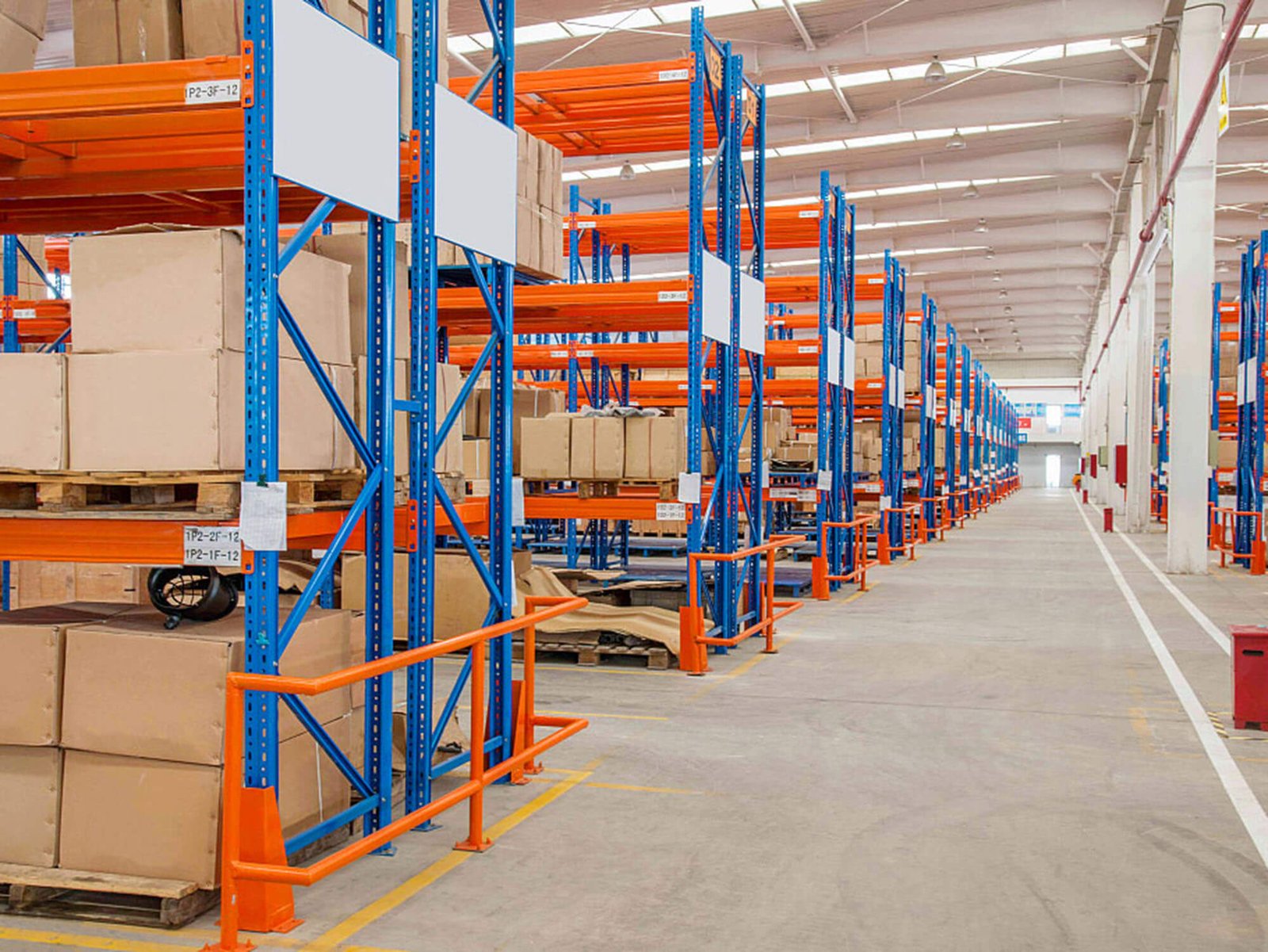

What Is Industrial Pallet Racking?
Industrial pallet racking — also referred to as commercial racking, warehouse racking, or pallet rack shelving — is the fundamental storage infrastructure used in warehouses, distribution centres, and manufacturing plants worldwide. Designed to store palletised goods on horizontal beams supported by vertical upright frames, industrial racking provides 100% direct access to every pallet position without the need to relocate adjacent inventory.
With load capacities ranging from 500 kg to 4,000 kg per beam level and heights reaching up to 12 metres, industrial pallet racking is the backbone of modern logistics. The system is compatible with counterbalanced forklifts, reach trucks, and order pickers, and can be fully integrated with Warehouse Management Systems (WMS) for real-time inventory tracking, barcode scanning, and automated stock replenishment.
At Gieantech, our industrial pallet racks are manufactured using premium Q235B / Q345B structural steel, undergo a rigorous 3-step surface treatment (pickling → phosphating → powder coating at 60–100 μm), and are engineered to meet ISO 9001, CE, AS 4084, and FEM/EN 15512 international safety standards. We supply to warehouses across 57+ countries, offering fully customisable dimensions, free CAD layout design, and comprehensive factory-direct pricing with 10-year structural warranty.
4,000 kg
Max load per level
12 m
Max racking height
100%
Direct pallet access
2–8
Adjustable beam levels
16,000 kg
Max load per bay
2.0×
Safety factor rating
Common Warehouse Storage Problems
Without the right racking system, warehouses waste space, slow down operations, and risk costly safety incidents.
Wasted Floor Space
Floor-level stacking leaves 60-70% of vertical cubic space completely unused, forcing costly warehouse expansions or overflow into satellite locations.
Slow Picking Speed
Disorganised inventory means forklifts traverse the entire warehouse for a single pick, increasing labour costs and shipping delays dramatically.
Safety Hazards
Unstable block-stacking, overloaded shelves, and poor aisle planning create crush and collapse risks — a leading cause of warehouse injuries globally.
Poor Inventory Visibility
Without structured racking and barcode locations, inventory accuracy drops below 90%, triggering stock-outs, over-ordering, and customer dissatisfaction.
Why Choose Our Industrial Pallet Racking?
Built for demanding industrial environments — every component is engineered for strength, safety, and long-term reliability.
100% Pallet Selectivity
Every single pallet is directly accessible from the aisle — no need to move adjacent goods. Ideal for high-SKU operations requiring rapid, random-access picks across the warehouse.
Maximise Vertical Space
Heights up to 12 metres with multi-level beam configurations. Convert unused overhead cubic space into valuable storage capacity — doubling or tripling your pallet positions without expanding the footprint.
Seismic Zone IV Ready
Engineered with cross-bracing, base plates, and anchor bolts to withstand seismic forces in high-risk earthquake zones. Fully compliant with AS 4084 and FEM 10.2.08 structural standards.
WMS Integration
Seamlessly integrates with Warehouse Management Systems via barcode and RFID location labels. Supports real-time inventory tracking, cycle counting, and automated stock replenishment workflows.
Modular & Scalable
Start with a single row and expand infinitely. Starter + add-on bays share common uprights to minimise cost and maximise aisle space. Reconfigure beam heights in minutes with no special tools.
Cold Storage Capable
Hot-dip galvanised (80–120 μm) option rated for -30°C to +50°C environments. Sealed bearings, anti-corrosion coatings, and food-safe finishes for frozen and chilled warehouse zones.
Universal Forklift Access
Compatible with counterbalanced forklifts, reach trucks, and order pickers. Adjustable aisle widths from 2.5 m (narrow aisle) to 3.5 m (wide aisle) suit any fleet configuration.
Fire Sprinkler Compliant
Open-frame design with optional wire mesh decking ensures unobstructed sprinkler coverage per NFPA 13 and FM Global standards. In-rack sprinkler brackets available for tall-bay configurations.
Industrial Pallet Racking Types
Choose the configuration that best matches your warehouse layout, throughput requirements, and inventory profile.

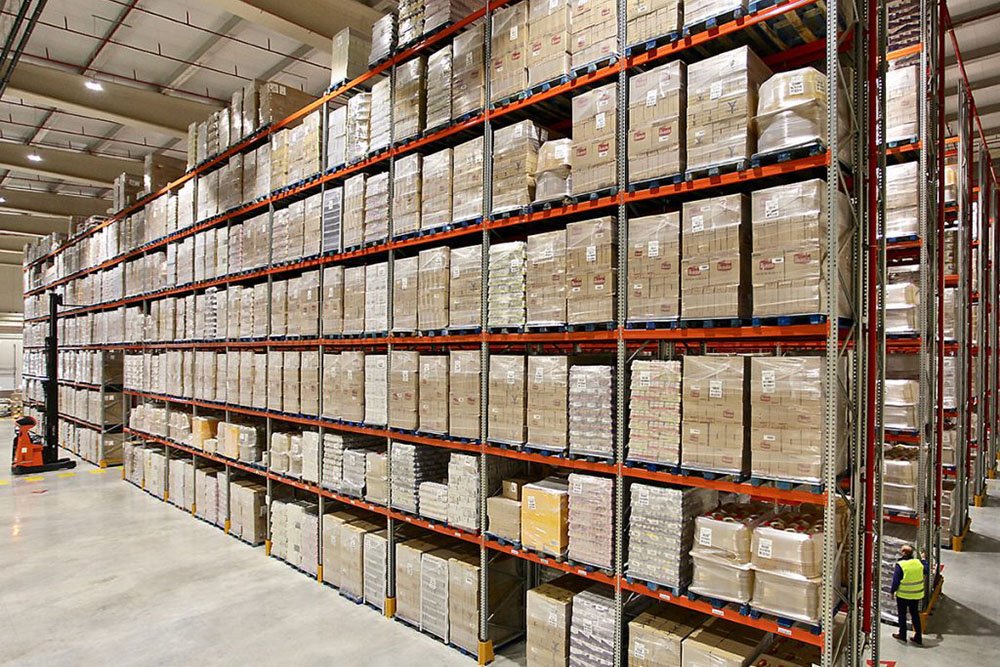

Selective Pallet Racking
The industry standard for 100% direct pallet access. Ideal for high-SKU warehouses requiring rapid picks from every location. Adjustable beam levels with 50/75 mm pitch accommodate varying pallet heights. The most versatile and cost-effective solution for general-purpose storage.

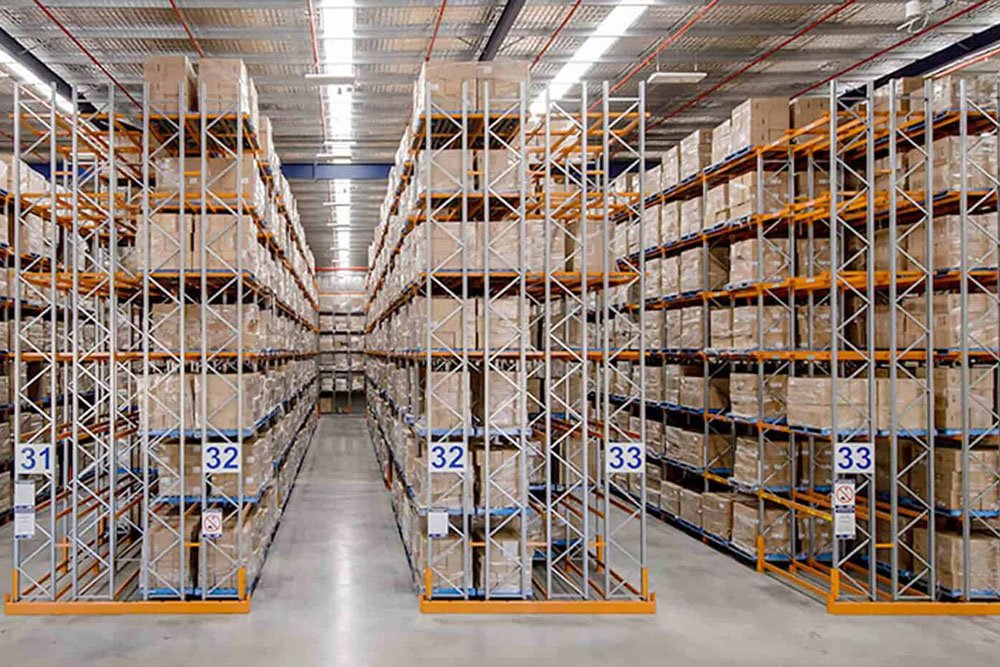

Double Deep Racking
Store pallets two-deep to reduce aisles by 50% and boost capacity by 40% over selective. Requires deep-reach forklift with pantograph attachment. Perfect for medium-throughput operations with 10-20 SKU lines needing higher density without sacrificing too much selectivity.
VNA Narrow Aisle Racking
Achieve 50% more storage than standard selective by reducing aisles to just 1.5–1.8 m. Wire or rail-guided turret trucks navigate with ±1 mm precision. Ideal for high-value inventory in space-constrained warehouses demanding both density and full pallet selectivity.
Drive-In / Drive-Through
Deep-lane block storage with 85% space utilisation — forklifts drive directly into the rack lanes. Store 6-12 pallets deep per lane. Optimised for bulk storage of uniform, low-SKU products such as beverages, building materials, and seasonal inventory.
Radio Shuttle Racking
Semi-automated shuttle carts transport pallets within deep lanes at 1.5 m/s — no forklift entry required. Up to 40 m lane depth with 2-way or 4-way shuttles. 24V Li-ion battery delivers 8-hour runtime. Ideal for cold storage, food, and high-throughput distribution.
Cantilever Racking
Open-front arm design stores pipes, timber, steel bars, and other long or irregularly shaped items. Single or double-sided configurations. Hot-dip galvanised option for outdoor storage. Arms adjustable in 100 mm increments support 200–1,500 kg each.
Anatomy of Industrial Pallet Racking
Every component is precision-engineered for structural integrity, rapid assembly, and long-term performance in demanding industrial environments.
Upright Frames
Roll-formed Q235B/Q345B steel columns (1.5–2.5 mm gauge) with diagonal and horizontal bracing. Available in heights from 1.5 m to 12 m. Pre-punched teardrop or keyhole slots at 50/75 mm pitch enable rapid, tool-free beam height adjustment.
Box Beams
Step-beam or structural box-beam profiles (1.2–2.0 mm gauge) in lengths from 1,800 mm to 3,600 mm. Each beam pair supports 500–4,000 kg. Safety clip or auto-lock pins prevent accidental dislodging during forklift operation.
Base Plates & Anchors
150×150 mm welded base plates with M12/M16 chemical anchor bolts secure frames to the concrete floor. Shim plates compensate for uneven floors up to ±5 mm. Designed for seismic resistance in Zone IV regions.
Row Spacers & Bracing
Hot-rolled row spacers maintain precise back-to-back frame spacing. Cross-aisle bracing and wall ties provide additional lateral stability in tall-bay configurations, preventing sway and frame drift under dynamic forklift loads.
Safety Accessories
Column protectors (bolt-down or wraparound), end-of-aisle guards, anti-collapse mesh panels, pallet backstops, and safety signage. Load capacity labels, inspection tags, and floor line marking for OSHA/HSE compliance.
Decking Options
Wire mesh decking (50×50 mm grid, 4–6 mm gauge) for fire sprinkler compliance. Steel panel decking for heavy or small items. Timber decking for budget-conscious installations. All decking is drop-in, tool-free installation.
Engineering Data
All specifications can be fully customised to your warehouse dimensions, load requirements, and operational workflow.
📐 Dimensions
🔩 Material & Finish
⚖️ Load & Safety
🚚 Logistics
Trusted Across Every Industry
From frozen food distribution to automotive parts sequencing — our industrial pallet racking adapts to the unique demands of any sector.
3PL & Distribution
Handle thousands of SKUs across multiple clients with 100% pallet selectivity. Adjustable beam levels accommodate varying pallet heights, while barcode location labels integrate with WMS for real-time inventory accuracy across shared warehouse operations.
Retail & E-Commerce
Support rapid order fulfilment with direct access to every product line. Combine selective racking with pick modules and carton flow for multi-channel distribution. Scalable bay-by-bay expansion tracks seasonal demand surges without workflow disruption.
Cold Storage & Frozen
Hot-dip galvanised frames and sealed hardware operate reliably down to -30°C. Reduced aisle configurations minimise cold-room door openings, cutting energy costs. FIFO flow-through options ensure strict date-code rotation for perishable inventory management.
Manufacturing & WIP
Line-side pallet racking buffers raw materials and sub-assemblies for just-in-time production. Forklift-accessible bays reduce material handling time, while colour-coded beam levels separate WIP stages for visual production flow management on the factory floor.
Pharmaceutical
Meet GDP and GMP storage requirements with clean, inspectable racking. Powder-coated smooth surfaces prevent dust accumulation. Lot-tracked pallet positions integrate with serialisation systems, supporting full traceability from receipt to dispatch in regulated environments.
Automotive
Store engines, body panels, and sequenced parts for assembly plant logistics. Heavy-duty bays handle uneven loads up to 4,000 kg. Integrate with tugger train routes and AGV pathways for automated parts delivery to the production line.
Food & Beverage
HACCP-compliant racking with wire mesh decking for sprinkler penetration and air circulation. Galvanised options resist moisture in brewery, dairy, and bottling environments. Pallet flow add-ons enable FIFO rotation of date-sensitive inventory batches.
Building Materials
Store heavy, bulky items like cement, tiles, and plumbing fixtures with reinforced bay capacities up to 16,000 kg. Wide-aisle configurations accommodate oversized loads. Outdoor-rated galvanised options withstand weather exposure in yard storage applications.
How Does Industrial Pallet Racking Compare?
See how our industrial pallet racking stacks up against alternative storage methods across key performance metrics.
| Feature | Industrial Pallet Racking | Block Stacking | Shelving Units | Mezzanine Floor |
|---|---|---|---|---|
| Load Capacity | 500 – 4,000 kg / level | Varies by product | 100 – 500 kg / shelf | 300 – 2,000 kg/m² |
| Height Utilisation | Up to 12 m | 2 – 4 layers max | Up to 3 m | Up to 12 m |
| Pallet Selectivity | 100% direct access | Top layer only | N/A (carton-level) | Depends on rack used |
| Space Utilisation | 50 – 60% (selective) | 65 – 70% | 30 – 40% | 80 – 90% (floor area) |
| Forklift Compatible | ✓ All types | ✓ Limited | ✗ Manual only | ✓ With ramp / lift |
| WMS Integration | ✓ Full barcode / RFID | ✗ Difficult | Limited | ✓ With rack system |
| FIFO Capability | ✓ Standard | ✗ LIFO only | ✓ Manual | Depends on layout |
| Scalability | Bay-by-bay expansion | Floor space only | Unit-by-unit | Modular sections |
| Fire Compliance | ✓ NFPA 13 / FM Global | ✗ Obstructs sprinklers | Partial | ✓ With design review |
| Installation | 2 – 5 days / 100 bays | No installation | 1 – 2 days | 10 – 20 days |
| Cost per Pallet | $$ (best value) | $ (lowest) | N/A | $$$ (highest) |
Professional Warehouse Layout Design
Every industrial pallet racking project at Gieantech begins with a comprehensive warehouse layout analysis. Our engineering team evaluates your floor plan dimensions, ceiling clearance, column positions, dock door locations, and forklift traffic patterns to design the optimal racking arrangement.
We provide complimentary 2D AutoCAD floor plans and 3D warehouse renderings so you can visualise the finished installation before placing an order. Our designs maximise pallet positions per square metre while maintaining safe aisle widths, fire escape routes, and sprinkler clearance zones.
From Enquiry to Installation in 6 Steps
Our streamlined project workflow ensures your racking system is designed, manufactured, and installed on time and on budget.
Requirement Consultation
Share your warehouse dimensions, ceiling height, pallet sizes, load weights, and throughput targets. Our engineers analyse your needs within 24 hours and recommend the optimal racking configuration.
CAD Layout Design
Receive a complimentary 2D AutoCAD floor plan and 3D warehouse rendering. We optimise pallet positions, aisle widths, forklift paths, and fire-safety clearances specific to your building and workflow.
Quotation & Confirmation
Receive a detailed factory-direct quotation with itemised component pricing, material specs, and delivery timeline. Adjust quantities, finishes, or configurations before locking in your order.
Production & QC
Manufacturing begins with raw material inspection (mill test certificates), roll forming, robot welding, surface treatment, and final QC checkpoints. In-process photos and inspection reports shared with you.
Flat-Pack Shipping
Components are flat-packed with anti-rust VCI film, bubble wrap, and steel banding. Container loading is optimised for maximum packing density. Full shipping documents (BL, packing list, CO) provided.
Installation Support
Receive a comprehensive installation manual with anchor plans and assembly sequences. Optional on-site engineering supervision is available for large projects. Full system inspection upon completion.
Your Trusted Industrial Racking Partner
Factory-direct quality, engineering excellence, and global logistics expertise — all from one source.
Own Factory in Dongguan
20,000 m² manufacturing facility with automated roll-forming lines, robot welding stations, and electrostatic powder-coating booths. No middlemen — factory-direct pricing with full quality control.
57+ Countries Served
Proven track record exporting to 57+ countries across 6 continents. Deep understanding of local building codes, import regulations, and logistics requirements for every major market.
Free CAD & 3D Design
Complimentary warehouse layout design with 2D AutoCAD plans and photorealistic 3D renderings. Our engineering team optimises every square metre before you invest a single dollar.
ISO / CE / AS 4084
Full international certification suite: ISO 9001 quality management, CE marking for European markets, AS 4084 for Australia/NZ, and SGS third-party testing reports.
10-Year Structural Warranty
Industry-leading 10-year warranty on all structural components — uprights, beams, and bracing. Lifetime availability of spare parts and replacement components for any system we manufacture.
24-Hour Response
Dedicated project manager responds within 24 hours via email, WhatsApp, or phone. Multilingual support team (English, Chinese, Spanish) covers every time zone for seamless communication.
International Quality & Safety Standards
Every racking system we manufacture meets or exceeds the strictest global quality and safety certifications.
ISO 9001:2015
Quality management system certification ensuring consistent manufacturing processes and continuous improvement.
CE Marking
European conformity marking confirming compliance with EU health, safety, and environmental protection standards.
AS 4084
Australian standard for steel storage racking — covering design, manufacture, and safe installation practices.
SGS Tested
Third-party inspection and testing by SGS — verifying material composition, weld quality, and load-bearing performance.
FEM / EN 15512
European racking design standard covering structural calculations, tolerances, and safety factors for pallet racking systems.
Frequently Asked Questions
Everything you need to know about our industrial pallet racking systems — from specifications to ordering.
Ready to Optimise Your Warehouse Storage?
Get a complimentary CAD layout, 3D warehouse rendering, and factory-direct quote for your industrial pallet racking project. Our engineering team responds within 24 hours.
