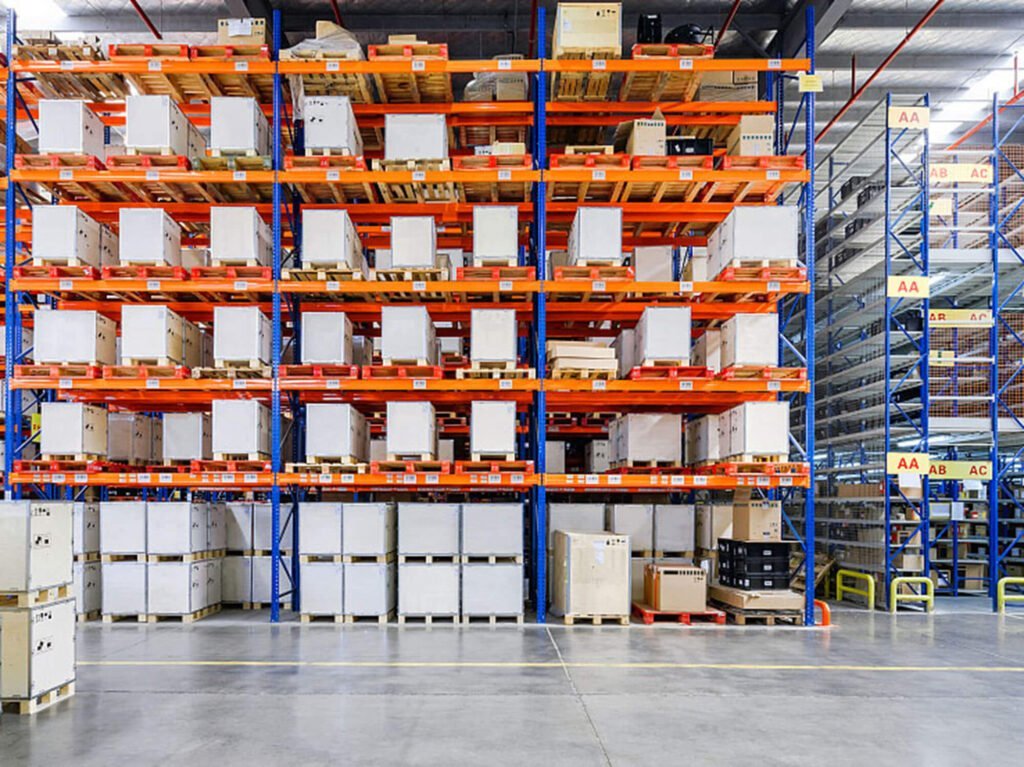

Heavy Duty Pallet Racking System
Engineered for maximum load capacity and warehouse efficiency. Our selective pallet racking systems support up to 4,000 kg per beam level — providing 100% direct access to every pallet, optimized vertical space utilization, and seamless WMS integration for modern warehouse operations.
4,000 kg
Max Load / Level
12m
Max Height
100%
Pallet Accessibility
What Is Heavy Duty Pallet Racking?
Heavy duty pallet racking — also known as selective pallet racking — is the most widely used industrial storage system in warehouses worldwide. Designed to store palletized goods on horizontal beams supported by vertical upright frames, these systems provide 100% direct access to every pallet position without the need to move adjacent stock.
With load capacities ranging from 500 kg to 4,000 kg per beam level and heights up to 12 meters, heavy duty pallet racking is the backbone of modern warehousing, distribution centers, and manufacturing facilities. The system is compatible with standard forklifts, reach trucks, and can be integrated with Warehouse Management Systems (WMS) for real-time inventory tracking.
At Gieantech, our heavy duty pallet racks are manufactured using premium Q235B / Q345B structural steel, undergo a rigorous 3-step surface treatment (pickling → phosphating → powder coating), and are engineered to meet ISO 9001, CE, and AS4084 international safety standards. We supply to warehouses across 57+ countries, offering fully customizable dimensions, free CAD layout design, and comprehensive factory-direct pricing.
Whether you need a simple single-deep selective system or a complex multi-aisle installation with seismic bracing, our engineering team designs every project from the ground up to maximize your space utilization, operational efficiency, and safety compliance.
4,000 kg
Max load per level
12 m
Max racking height
100%
Direct pallet access
2–8
Adjustable beam levels
16,000 kg
Max load per bay
2.0x
Safety factor rating
Why Choose Our Heavy Duty Pallet Racking?
Built for demanding industrial environments — every component is engineered for strength, safety, and long-term reliability.
100% Pallet Selectivity
Every pallet is directly accessible — no need to move adjacent goods. Ideal for high-SKU operations requiring frequent picks.
Maximize Vertical Space
Heights up to 12m with multi-level beam configurations. Convert unused overhead space into valuable storage capacity.
Seismic Zone 4 Ready
Engineered with cross-bracing, base plates, and anchor bolts to withstand seismic activity in high-risk earthquake zones.
WMS Compatible
Seamlessly integrates with Warehouse Management Systems for real-time inventory tracking, barcode scanning, and FIFO control.
Fully Adjustable
Beam levels adjust at 50mm or 75mm increments — easily reconfigure shelf heights as your inventory mix evolves.
Free CAD Layout Design
Our engineers create optimized warehouse layouts with CAD floor plans and 3D renderings — completely free of charge.
Factory-Direct Pricing
Eliminate middlemen and import markups. Get competitive pricing directly from our manufacturing partners in Guangdong.
Superior Surface Treatment
3-step process: pickling → phosphating → electrostatic powder coating (60-80μm). Superior corrosion resistance for export.
Heavy Duty Racking Configurations
We provide a full spectrum of heavy duty pallet racking solutions — from standard single-deep selective to specialized high-density systems.
Best SellerSelective Pallet Rack
The most popular racking type worldwide. 100% direct access to every pallet position with adjustable beam heights. Ideal for high-SKU warehouses.
High DensityDouble Deep Pallet Rack
Store pallets two-deep on each side. Increases storage density by up to 40% compared to standard selective, with reduced aisle requirements.
Max StorageDrive-In / Drive-Through Rack
Forklifts drive directly into the rack structure for ultra-high density storage. Maximizes space utilization up to 85% — ideal for bulk homogeneous products.
Space SaverVNA (Very Narrow Aisle) Rack
Aisles as narrow as 1.5m using specialized turret trucks. Maintains 100% selectivity while increasing storage density by up to 45% versus standard selective.
SmartRadio Shuttle Rack
Semi-automated with remote-controlled shuttles for pallet transport. Reduces forklift dependency, boosts throughput, and enables ultra-high density in cold storage.
AdvancedMobile Pallet Rack
Entire racking rows mounted on powered bases that move along floor tracks. Creates aisles on demand — maximizes floor space usage in high-value real estate.
Anatomy of a Pallet Racking System
Every component is precision-manufactured to work together as a high-performance, load-bearing system.
Upright Frames
Vertical columns made from Q235B/Q345B steel (1.5–2.5mm thick) with diagonal and horizontal bracing. The backbone of the entire racking system supporting all vertical loads.
Load Beams
Horizontal members (step beams or box beams) supporting pallets. Available in lengths 1.2m – 3.6m with 3-rivet safety lock connectors for secure beam-to-upright engagement.
Wire Mesh Decking
Galvanized or powder-coated wire mesh panels providing pallet support, fire sprinkler water penetration, and visibility. Enhances safety by preventing fallen items.
Column Protectors
Heavy-gauge steel guards bolted to the floor around upright bases. Absorbs forklift impact damage, protecting structural integrity and extending rack lifespan.
Row Spacers & Bracing
Steel tubes connecting back-to-back rows for lateral stability. Cross-bracing (X-bracing or K-bracing) adds seismic resistance in earthquake-prone zones.
Base Plates & Anchors
Floor-mounted plates distributing vertical loads, secured with M12/M16 anchor bolts. Essential for stability, especially in tall or seismically active installations.
Detailed Engineering Specifications
Precision-manufactured with structural-grade steel, meeting the most demanding international safety and performance standards.
Structural Dimensions
Material & Surface
Load & Safety
Logistics & Trade
Built for Every Industry
From cold chain logistics to automotive manufacturing — heavy duty pallet racking adapts to the most demanding industrial environments.
3PL & Distribution
High-throughput distribution centers with multi-SKU inventory, cross-docking, and FIFO order fulfillment
Cold Chain & Food
Temperature-controlled cold rooms and freezer storage for food, beverage, and pharmaceutical supply chains
Automotive & Parts
Heavy components, engines, transmissions, and aftermarket parts storage in manufacturing facilities
E-Commerce & Retail
Fast-moving consumer goods with high SKU counts, pick-and-pack zones, and rapid order fulfillment
Pharmaceutical
GMP-compliant racking for medicines, medical devices, and clinical supplies with batch tracking
Electronics & Tech
Sensitive equipment, server hardware, consumer electronics, and component inventory management
Construction & Building
Heavy building materials — steel beams, tiles, plumbing fixtures, and hardware supplies
General Manufacturing
Raw materials, work-in-progress, and finished goods staging areas in production facilities
Heavy Duty Racking Types Compared
Not sure which heavy duty system fits your operation? Compare key metrics side by side.
| Feature | Selective | Double Deep | Drive-In | VNA | Mobile |
|---|---|---|---|---|---|
| Selectivity | 100% | 50% | Last pallet only | 100% | 100% |
| Storage Density | Standard | +40% | +85% | +45% | +80% |
| Access Method | FIFO | FILO | LIFO / FIFO | FIFO | FIFO |
| Forklift Type | Standard | Reach Truck | Standard | Turret Truck | Standard |
| Aisle Width | 2.5–3.5m | 2.5–3.5m | N/A (drive-in) | 1.5–1.8m | 1 aisle only |
| Best For | High SKU variety | Medium variety | Bulk / same SKU | Space-limited | Premium space |
| Investment | $$ (Moderate) | $$ | $$ | $$$ | $$$$ |
| Cold Storage | Yes | Yes | Yes | Limited | Excellent |
From Blueprint to Warehouse in 6 Steps
Our end-to-end project delivery process ensures your racking system is designed, manufactured, and installed with precision.
Requirement Analysis
Share your warehouse dimensions, ceiling height, pallet sizes, load weights, forklift types, and throughput requirements.
CAD Layout Design
Our engineers create optimized floor plans with rack placement, aisle widths, fire lanes, and material flow paths — free of charge.
3D Rendering & Review
Receive photorealistic 3D renderings of your complete racking installation for client presentations and final approval.
Sampling & Approval
For first orders, we produce sample racks for physical quality verification before proceeding to mass production.
Manufacturing & QC
Batch production with rigorous quality control at every stage — steel cutting, welding, surface treatment, and final inspection.
Packing & Global Delivery
Secure packaging (bubble film + carton + wooden pallet), door-to-port logistics, and free installation guidance documentation.
Your Trusted Racking Partner Since Day One
With a decade of export experience and 10+ partner factories, we deliver warehouse solutions that competitors simply cannot match.
Factory-Direct Pricing
No middlemen, no import agents — you deal directly with our manufacturing team in Dongguan, Guangdong. Save 15-30% vs. trading company quotes.
10+ Partner Factories
Our extensive manufacturing network covers every racking type — from simple shelving to automated AS/RS systems — ensuring capacity and quality.
57+ Countries Served
Proven export experience to North America, Europe, Australia, Middle East, Africa, and Southeast Asia. We understand international shipping and customs.
Free CAD & 3D Design
Our in-house engineers create professional warehouse layouts with AutoCAD floor plans and 3D visualizations — absolutely free for all clients.
3-Step Anti-Corrosion
Pickling → phosphating → electrostatic powder coating (60-80μm). Passes 500-hour salt spray testing for extreme climate durability.
24h Professional Response
Dedicated project manager for every order. Technical questions, drawing revisions, shipping updates — all handled within 24 hours.
International Safety & Quality Standards
Every racking system is engineered and manufactured to meet the world’s most demanding safety certifications.
ISO 9001:2015
Quality management system
CE Marking
EU safety conformity
AS 4084
Australian racking standard
SGS Tested
Independent lab verification
Fire Compliance
FM/UL sprinkler compatible
Frequently Asked Questions
Everything you need to know about heavy duty pallet racking — answered by our engineering team.
Get a complimentary CAD layout, 3D warehouse rendering, and factory-direct quote for your heavy duty pallet racking project. Our engineering team responds within 24 hours.
