Fabric Storage Racks
Heavy-duty steel racking systems engineered specifically for storing fabric rolls, textile bolts, leather hides, and non-woven materials. From single-roll selectivity to high-density cantilever configurations — Gieantech designs and manufactures fabric storage racks that protect your materials, maximise floor space, and streamline your cutting-room workflow.
2,000 kg
Per Level Capacity
300%
More Storage vs Floor
6 m+
System Height
57+
Countries Served
What Are Fabric Storage Racks?
Fabric storage racks — also called textile roll racks, fabric roll shelving, cloth storage systems, or bolt racks — are industrial steel racking systems specifically designed to store, organise, and protect rolled or folded textiles in garment factories, fabric warehouses, upholstery workshops, and distribution centres. Unlike standard pallet racking, fabric racks are configured for the unique shape, weight, and handling requirements of cylindrical rolls ranging from 0.5 m to 3+ m in width.
The core challenge of fabric storage is preventing material damage — creasing, colour fading from UV/light, dust contamination, moisture absorption, and deformation from improper stacking. Professionally engineered fabric racks solve all of these by providing individual roll support, adequate air circulation, and easy visual identification. Each roll is stored in its own position, accessible without disturbing adjacent stock, enabling fast and accurate order picking for cutting-room production schedules.
At Gieantech, we manufacture a complete range of fabric storage solutions — from beam-type roll racks and cantilever arms to A-frame display racks and motorised mobile systems. Every system is fabricated from Q235B steel in our 20,000 m² Dongguan factory, powder-coated for clean environments, and available in custom colours to match your facility branding. We design, build, and ship to 57+ countries with full export documentation.
300%
More rolls vs floor stacking
6 m+
Maximum system height
100%
Individual roll access
2,000 kg
Per level capacity
20,000 m²
Dongguan factory
57+
Countries served
The Real Cost of Poor Fabric Storage
Disorganised fabric storage creates compounding losses — from material waste to production delays.
Creasing & Deformation
Floor-stacked fabric rolls compress under their own weight, creating permanent creases, fold marks, and flat spots. Creased fabric requires re-rolling, steaming, or rejection — adding 15–20 minutes of non-productive labour per affected roll.
Colour Fading & Contamination
Exposed fabrics absorb dust, absorb odours, and fade under fluorescent or natural lighting. Without covered or organised storage, 3–8% of fabric inventory becomes unsellable due to discolouration, soiling, or cross-contamination between fibre types.
Search Time & Mis-Picks
When hundreds of fabric rolls are stacked without a system, locating a specific colour, pattern, or lot number means physically moving and inspecting multiple rolls. Average search time: 8–15 minutes per roll vs under 30 seconds with proper racking.
Wasted Floor Space
Single-level floor stacking uses only 20–30% of available cubic volume. In high-rent factory districts like Dongguan, Guangzhou, and Shaoxing, this wasted vertical space translates to thousands of yuan per month in unnecessary lease costs.
Why Professional Fabric Storage Racks Matter
Engineered fabric racks protect your material investment, accelerate order fulfilment, and maximise your facility’s capacity.
3× Storage Density
Multi-level fabric racks convert wasted overhead space into organised roll storage. A 4 m ceiling facility with 4-tier beam racks stores 3–4 times more fabric rolls than floor stacking — reclaiming thousands of square metres in high-rent textile districts.
Zero Crease Damage
Every roll rests on smooth steel beams or cradle supports with no compression from above. Cylindrical shape is maintained, eliminating creasing, flat spots, and deformation that make fabric unsuitable for precision cutting and high-quality garment production.
Instant Roll Access
Each roll position is individually accessible from the aisle — no moving adjacent rolls to reach the one you need. Colour, lot number, and roll weight visible at a glance via labels or barcodes. Picking time drops from 15 minutes to 30 seconds.
Dust & UV Protection
Open-frame ventilated racking allows air circulation to prevent moisture build-up and mildew. Optional dust covers, curtain panels, and UV-filtering enclosures protect light-sensitive fabrics from fading, discolouration, and environmental contamination.
Visual Inventory Control
Organised roll storage by colour, material type, width, or customer order makes visual identification instant. Combined with barcode or RFID labelling, fabric racks enable 99%+ inventory accuracy and eliminate costly mis-picks on the cutting floor.
Variable Width Support
Adjustable beam spacing accommodates roll widths from 0.5 m (narrow trims and ribbons) to 3+ m (wide-width upholstery and industrial textiles). One racking system handles your entire fabric portfolio without needing different rack types.
Ergonomic Roll Handling
Roll cradles, angled arms, and adjustable beam heights position fabric at comfortable working heights for manual or mechanical handling. Reduce lifting injuries, minimise roll drops, and improve operator productivity in the fabric warehouse.
Modular & Expandable
Start with the bays you need and add sections as your fabric inventory grows. Clip-in beams and bolt-together frames allow reconfiguration in hours — adjusting level heights, adding new tiers, or extending rack runs without dismantling existing storage.
Fabric Storage Solutions for Every Workflow
Choose the rack type that matches your fabric format, warehouse layout, and operational workflow.

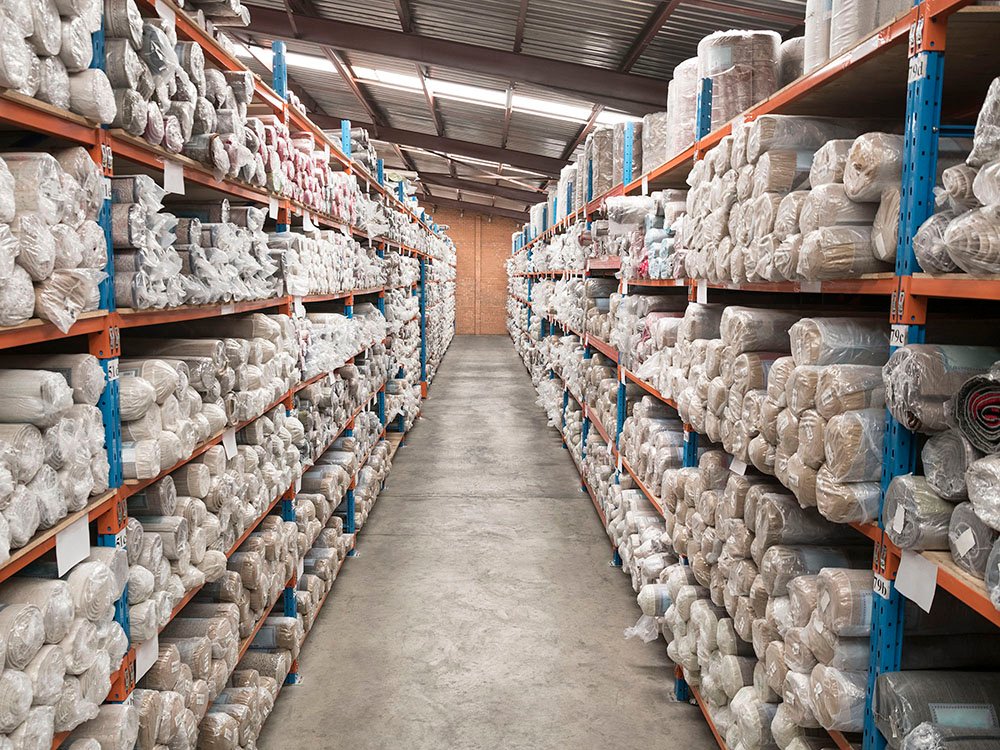

Beam-Type Roll Rack
Horizontal beams support fabric rolls laid across the span. Rolls sit side by side on each level, accessible from the aisle face. The most cost-effective and widely used fabric storage system for garment factories and textile warehouses with 100+ roll SKUs.

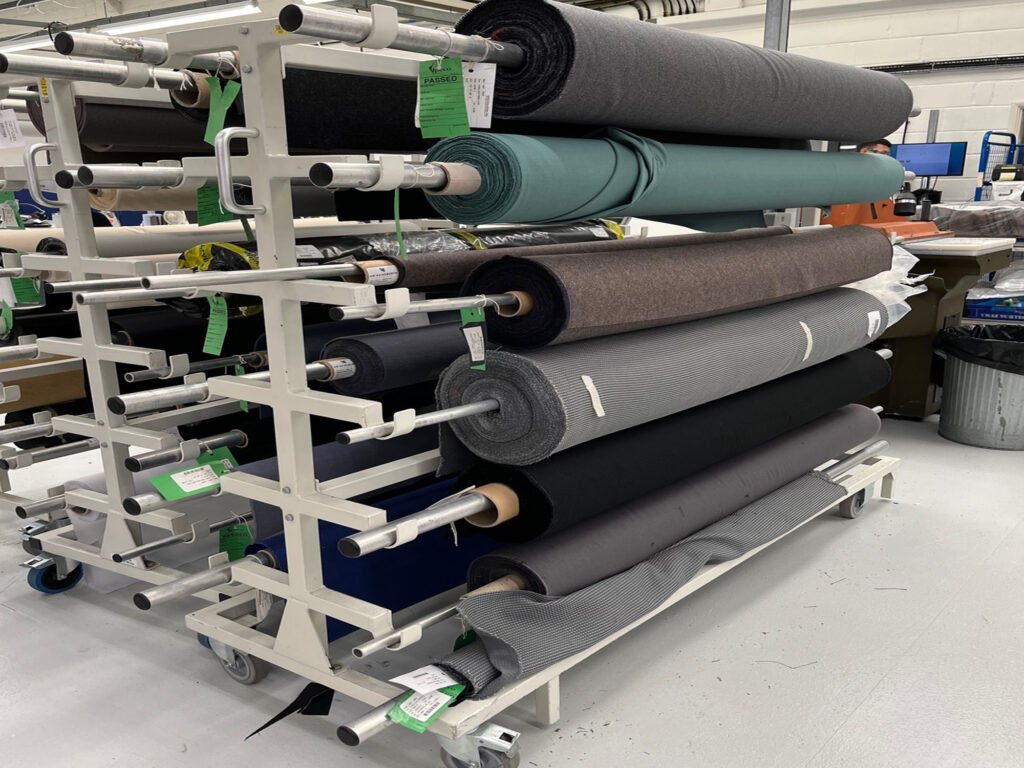

Cantilever Fabric Rack
Single-sided or double-sided cantilever arms extend from a central column with no front uprights. Ideal for extra-wide fabric rolls (2.5–3+ m) and long goods that cannot fit between conventional rack uprights. Fully adjustable arm heights.
A-Frame Display Rack
Angled A-frame design lets fabric cascade down for easy visual inspection and pull-to-cut sampling. Perfect for showrooms, retail fabric stores, and cutting rooms where customers or operators need to see and feel the material before cutting.
Roll Cradle Rack
V-shaped or U-shaped cradle channels secure each roll individually, preventing lateral rolling and ensuring perfectly round storage. Ideal for heavy denim rolls (50–100 kg+), leather hides, and industrial textiles that tend to shift on flat beams.
Vertical Roll Rack
Rolls stored upright (vertically) in compartment slots. Maximises floor space for short fabric bolts (under 1.5 m) and non-woven materials. Each slot isolates one roll for instant identification. Popular in small workshops and retail back-of-store areas.
Mobile Fabric Rack
Beam or cantilever racks mounted on motorised mobile bases that eliminate fixed aisles. One movable aisle serves all rack rows, increasing storage density by 80–100%. The premium solution for high-value fabric warehouses where space is at maximum premium.
Anatomy of a Fabric Storage Rack
Every fabric rack is assembled from these purpose-engineered components for textile-safe storage.
Upright Frames
Roll-formed Q235B steel columns (1.5–2.0 mm) with diagonal bracing for lateral stability. Available in heights from 1.5 m to 6+ m. Powder-coated in smooth finish to prevent fabric snagging — no sharp edges, burrs, or rough welds anywhere in the assembly.
Roll Support Beams
Box-section or step-profile beams spanning between uprights. Smooth top surface prevents fabric damage. Adjustable in 50 mm pitch increments to match different roll diameters. Load-rated 200–2,000 kg per pair depending on span and steel gauge.
Roll Dividers / Cradles
Removable steel dividers or V-cradle inserts sit on beams to separate individual rolls and prevent lateral rolling. Spacing adjustable to match roll diameter — from 150 mm narrow trims to 500+ mm heavy denim bolts. Essential for mixed-inventory storage.
Cantilever Arms
Single-sided or double-sided arms extending 400–1,500 mm from the column. For extra-wide rolls that need unobstructed loading/unloading from the front. Inclined lip prevents roll slide-off. Adjustable height in 100 mm pitch.
Label Holders & ID Systems
Clip-on label holders, barcode mount channels, and RFID tag brackets integrated into each beam level. Supports colour-coded SKU labels, lot number identification, and WMS-linked barcode scanning for precise inventory management.
Dust Cover & UV Panels
Optional clip-on fabric curtains, clear PVC panels, or aluminium roller blinds protect stored rolls from dust, UV light, and airborne contamination. Particularly important for white, pastel, and light-sensitive fabrics in facilities with skylights or open doors.
Engineering Data
Specifications cover our full fabric storage rack range. All dimensions are customisable to your roll sizes and facility layout.
📐 Dimensions
🔩 Material & Finish
⚖️ Load & Safety
🚚 Project & Logistics
Fabric Storage Racks Across Industries
Any business that handles textiles in roll or bolt form benefits from professional fabric storage racks.
Garment Manufacturing
Garment factories store hundreds of fabric rolls across multiple styles, colours, and lots. Beam-type fabric racks organise materials by production order, enabling cutting-room operators to pull the exact roll needed in seconds rather than minutes.
Fabric Retail & Wholesale
Fabric shops and wholesale showrooms use A-frame display racks for customer-facing presentation and beam racks for back-of-store inventory. Quick roll identification by colour and material drives faster sales service and reduces customer wait times.
Upholstery & Furniture
Upholstery workshops store wide, heavy rolls of vinyl, leather, and decorator fabrics. Cantilever racks handle 2.5–3 m widths without front-post obstruction, while roll cradles secure heavy hides that would shift on flat beams.
Automotive Interiors
Automotive OEMs and Tier-1 suppliers store headliner fabric, seat cover materials, and carpet rolls with strict lot traceability. Fabric racks with barcode systems ensure the right material, colour, and lot reaches the production line for JIT assembly.
Home Textiles & Bedding
Manufacturers of curtains, bedsheets, and towelling store large-diameter rolls of cotton, polyester, and blended fabrics. Multi-level beam racks maximise warehouse density while keeping each roll accessible for rapid order fulfilment.
Technical & Industrial Textiles
Non-woven geotextiles, filtration media, medical-grade fabrics, and fiberglass cloth — these specialty materials need clean, organised storage with contamination control. Enclosed fabric racks with dust covers protect high-value technical textiles.
Print & Signage
Wide-format printing companies store PVC banner material, canvas, vinyl, and sublimation transfer rolls. Cantilever racks accommodate 3+ m widths while vertical racks organise short remnant rolls for on-demand signage production.
Textile Distribution & 3PL
Fabric distributors and third-party logistics providers handle diverse roll inventories from multiple suppliers. Selective beam racks with colour-coded labels and barcode integration enable accurate multi-client inventory management at scale.
Fabric Rack Type Comparison
Compare key features across six fabric storage rack configurations to find the ideal match for your textile operation.
| Feature | Beam Roll Rack | Cantilever | A-Frame | Roll Cradle | Vertical | Mobile |
|---|---|---|---|---|---|---|
| Roll Orientation | Horizontal | Horizontal | Angled cascade | Horizontal (cradled) | Vertical (upright) | Horizontal |
| Max Roll Width | Up to 2.4 m | 3.2 m+ | 1.8 m | 2.4 m | 1.5 m (bolt length) | 2.4 – 3.2 m |
| Storage Density | High | Medium | Low | Medium | High | Very High |
| Roll Access | All rolls from aisle | All rolls from front | All rolls visible | All rolls from aisle | All rolls from front | One aisle at a time |
| Best Roll Weight | 5 – 80 kg | 10 – 150 kg | 2 – 30 kg | 20 – 150 kg | 2 – 20 kg | 5 – 100 kg |
| Visual Inspection | Good (end view) | Good (end view) | Excellent (full drape) | Good (end view) | Excellent (top view) | Good (end view) |
| Max Height | 6 m | 6 m | 2.5 m | 4 m | 2 m | 6 m |
| Levels | 3 – 8 | 3 – 6 | 3 – 5 | 3 – 6 | Compartments | 3 – 8 |
| Floor Space Use | Good | Good | Fair | Good | Excellent | Excellent |
| Ideal Use Case | Factory / Warehouse | Wide / long rolls | Showroom / retail | Heavy / round stock | Small workshop | Premium high-density |
| Investment | $ | $$ | $ | $$ | $ | $$$$ |
Cotton & Woven Fabrics
Standard garment fabrics. 4–6 rolls per beam level on a 2.4 m bay. Beam spacing 350–450 mm. Store in temperature-controlled area (18–25°C, 50–65% RH) to prevent mildew and shrinkage.
Denim & Heavy Wovens
Heavy rolls requiring reinforced beam support (500+ kg/pair). Use roll cradles to prevent lateral shifting. 2–3 rolls per level on a 2.4 m bay. Bottom 2 levels for heaviest rolls; manual handling may need roll lifters.
Silk, Satin & Delicates
Light, delicate fabrics susceptible to snagging and UV fading. Require smooth powder-coated beams (no rough welds), dust covers, and UV-filtered lighting. 6–10 rolls per level. A-frame display racks for showroom.
Leather & Synthetic Hides
Stiff, heavy rolls that tend to uncoil. Roll cradles essential to maintain shape. Temperature-sensitive: avoid direct sunlight and humidity above 60%. Cantilever racks preferred for full-hide lengths exceeding 2 m.
Non-Woven & Technical Textiles
Wide, heavy industrial rolls (geotextiles, filtration, medical). Cantilever racks accommodate 3+ m widths without front-post obstruction. Maximum beam loads required. Enclosed storage for medical-grade cleanliness.
Fabric Roll Size & Rack Configuration Guide
Every fabric type has unique weight, diameter, width, and handling sensitivity that determines the right rack configuration. Beam spacing, level height, and load rating must be matched to your specific roll dimensions to maximise storage density while preventing damage.
Gieantech’s textile storage specialists design rack configurations tailored to your exact fabric inventory. We calculate rolls per bay, beam load ratings, level spacing, and recommend the optimal rack type (beam, cantilever, cradle, or A-frame) based on your roll portfolio. This eliminates wasted space and ensures every roll is stored safely and accessibly.
From Fabric Inventory to Organised Storage in 6 Steps
Our structured project workflow ensures your fabric racks are designed, built, and delivered on schedule.
Roll Inventory Assessment
Share your fabric roll dimensions (width, diameter, weight), SKU count, material types, and storage area dimensions. We analyse your roll portfolio to determine the optimal rack type, beam spacing, and level configuration for maximum density.
Layout Design & Engineering
Receive professional 2D/3D layout designs showing rack placement, aisle widths, rolls per bay, and total roll capacity. We calculate beam loads, level heights, and recommend accessories (dividers, cradles, covers) for your specific fabric types.
Quotation & Confirmation
Detailed quotation with per-bay pricing, accessory costs, surface finish options (colours to match your facility), and delivery timeline. Flexible payment terms: T/T, L/C, or milestone-based for large-scale textile warehouse projects.
Production & Quality Control
Precision manufacturing in our Dongguan factory with extra-smooth powder coating to prevent fabric snagging. All welds ground flush, edges deburred, and surfaces inspected for smoothness. QC photos shared via WhatsApp at each milestone.
Flat-Pack Shipping
Components individually wrapped with PE film and foam protectors. Flat-pack design maximises container loading density. Full export documentation: commercial invoice, packing list, B/L, certificate of origin, and fumigation certificate.
Installation & Commissioning
Detailed installation manual with levelling instructions, beam clip procedures, and safety checklist. Tool-free beam installation for most configurations. Remote video-guided support included free. 5-year structural warranty from installation.
Your Fabric Storage Rack Manufacturer
Factory-direct pricing, textile-safe finish quality, and complete project delivery to 57+ countries.
Own 20,000 m² Factory
Fully integrated manufacturing from steel coil to finished racks. Extra-smooth powder coating process specifically calibrated for textile-safe surfaces. Factory-direct pricing with zero middlemen and consistent quality control.
Textile-Safe Finish
Our powder coating process produces ultra-smooth surfaces with no rough welds, sharp edges, or burrs that could snag or damage delicate fabrics. RAL colour matching available — choose colours that complement your facility branding.
57+ Countries Served
Proven export track record to textile hubs worldwide — Bangladesh, Vietnam, Turkey, India, Pakistan, Ethiopia, Mexico, and beyond. We understand the storage challenges of the global garment supply chain from fibre to finished goods.
Free Layout Design
In-house engineering team creates professional fabric warehouse layouts with roll-per-bay calculations, beam load specifications, and aisle optimisation — all complimentary. We design the optimal configuration before you invest.
5-Year Structural Warranty
Comprehensive warranty on all structural components. Lifetime spare-parts availability for beams, frames, dividers, and accessories. We stand behind the quality and durability of every fabric rack we manufacture.
24-Hour Global Support
Dedicated project manager for every order. 24-hour response via email, WhatsApp, or phone. Production photos at every milestone, loading supervision, and remote installation guidance included as standard service.
Quality & Safety Standards
Every fabric storage rack is manufactured, tested, and certified to international quality and safety standards.
ISO 9001:2015
Quality management system for consistent manufacturing and continuous improvement processes.
CE Marking
European conformity for health, safety, and environmental compliance across EU member states.
SGS Inspection
Third-party material, coating, and load testing verification for export quality assurance.
RoHS Compliant
Powder coating free of lead, mercury, and hazardous substances — safe for textile contact environments.
Fire Safety
Powder coat finish rated for flame retardancy per industrial fire safety requirements for textile storage.
Frequently Asked Questions
Everything you need to know about fabric storage racks — from roll sizing to ordering and installation.
Ready to Organise Your Fabric Warehouse?
Share your fabric roll dimensions and warehouse layout. Receive a complimentary storage design with roll-per-bay calculations and factory-direct pricing within 48 hours.
