4-Way Shuttle Racking System
Next-generation intelligent pallet storage where autonomous shuttles move in all four directions across a dense multi-level racking grid β delivering up to 95% space utilisation, unmanned 24/7 operation, and seamless WMS integration for the smartest warehouse on the planet.
What Is a 4-Way Shuttle System?
An intelligent automated storage and retrieval system where autonomous shuttle vehicles navigate a dense racking grid in all four directions.
The 4-way shuttle racking system is an advanced automated storage and retrieval system (ASRS) where intelligent, battery-powered shuttle vehicles operate within a dense multi-level racking structure, moving pallets in all four directions β forward, backward, left, and right β across X and Y axes on every storage level. A dedicated vertical lift transfers shuttles and pallets between levels, creating a true 3D automated storage grid.
Unlike traditional 2-way radio shuttle systems that only operate within a single lane, the 4-way shuttle can traverse across lanes on the same level, dramatically increasing flexibility and throughput. Each shuttle is an autonomous robot equipped with onboard sensors, Li-ion batteries, Wi-Fi communication, and intelligent path-planning algorithms coordinated by a central WCS/WMS. This enables fully unmanned 24/7 operation with 95%+ space utilisation β making it the ultimate solution for high-density automated pallet storage.
Autonomous 4-Direction
Shuttles navigate X and Y axes freely on every level β not locked into single lanes
WMS/WCS Integration
Real-time inventory tracking, intelligent task dispatching, and ERP/SAP connectivity
Li-Ion Fast Charge
Quick-swap or opportunity-charging batteries for continuous 24/7 operation
Cold Storage Ready
Operates reliably at -30Β°C for frozen food and pharmaceutical cold chain
Warehouse Challenges Solved
Critical warehouse bottlenecks that 4-way shuttle automation eliminates β transforming manual operations into intelligent, scalable systems.
Labour Shortages
Finding and retaining forklift operators is increasingly difficult and expensive β turnover rates exceed 30% in many logistics markets.
β Fully unmanned 24/7 automated operationWasted Vertical Space
Conventional racking leaves 40-60% of building height unused because forklift reach is limited to 10-12m maximum.
β Up to 25m+ height, 15+ storage levelsLow Throughput
Manual forklift operations cap at 15-25 pallet movements per hour per aisle, creating bottlenecks during peak periods.
β 40-60+ pallets/hr with fleet scalingCold Storage Costs
Workers in freezer environments (-25 to -30Β°C) require mandatory warm-up breaks, reducing productive time by 40-50%.
β Robots work continuously at -30Β°CInventory Errors
Manual put-away and picking leads to misplaced pallets, wrong picks, and inventory discrepancies averaging 1-3% error rates.
β 99.99% pick accuracy with WMS controlSafety Incidents
Forklift-pedestrian collisions cause thousands of injuries annually. Narrow aisles and high racks compound the risk.
β Zero human entry into storage zoneIntelligent Performance
Every component of the 4-way shuttle system is engineered for autonomous intelligence, maximum density, and continuous operation.
4-Direction Navigation
Shuttles move forward, backward, left, and right on every storage level β not locked into single lanes like 2-way systems.
Multi-Level Vertical Lift
Dedicated pallet lift transfers shuttles and pallets between storage levels at 0.5-1.0 m/s for true 3D grid coverage.
AI Path Planning
Intelligent routing algorithms optimise shuttle paths, avoid traffic conflicts, and balance workload across the fleet in real-time.
Wi-Fi Fleet Control
Industrial Wi-Fi communication between WCS and shuttle fleet enables coordinated multi-vehicle operations and live status monitoring.
Li-Ion Quick Charge
48V lithium-ion batteries with opportunity charging β 15 min charge for 4+ hours runtime. No downtime for battery swaps.
-30Β°C Cold Storage
Sealed components, heated electronics, and low-temp lubricants enable continuous operation in deep-freeze environments.
WMS/ERP Integration
Seamless connectivity with SAP, Oracle, Manhattan, and custom WMS via standard APIs β real-time inventory accuracy.
Scalable Fleet
Add shuttles as throughput grows β start with 2-4 vehicles and scale to 20+ without structural changes to the racking.
System Configurations
Gieantech offers multiple 4-way shuttle configurations to match your pallet volume, throughput requirements, and building dimensions.

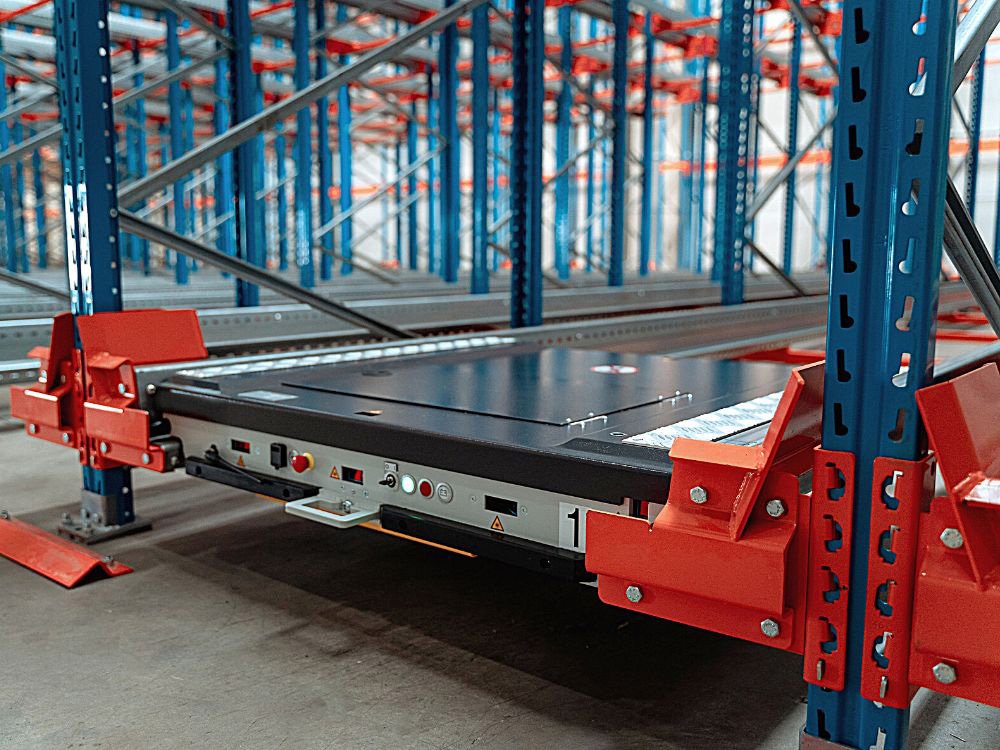

Standard 4-Way Shuttle
Single-lift configuration with 2-8 shuttles per system. Ideal for medium-volume warehouses with 1,000-10,000 pallet positions and moderate throughput requirements.

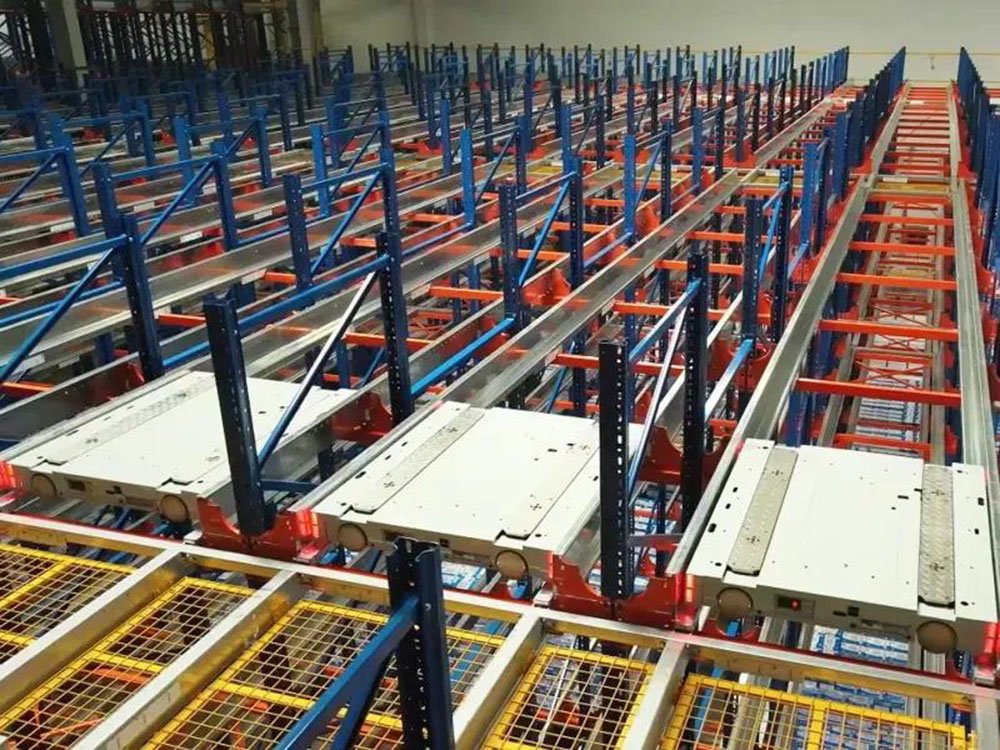

High-Throughput Multi-Lift
Dual or triple vertical lifts with 10-20+ shuttles for high-volume distribution centres. Achieves 60+ pallet movements per hour with fleet-level AI coordination.

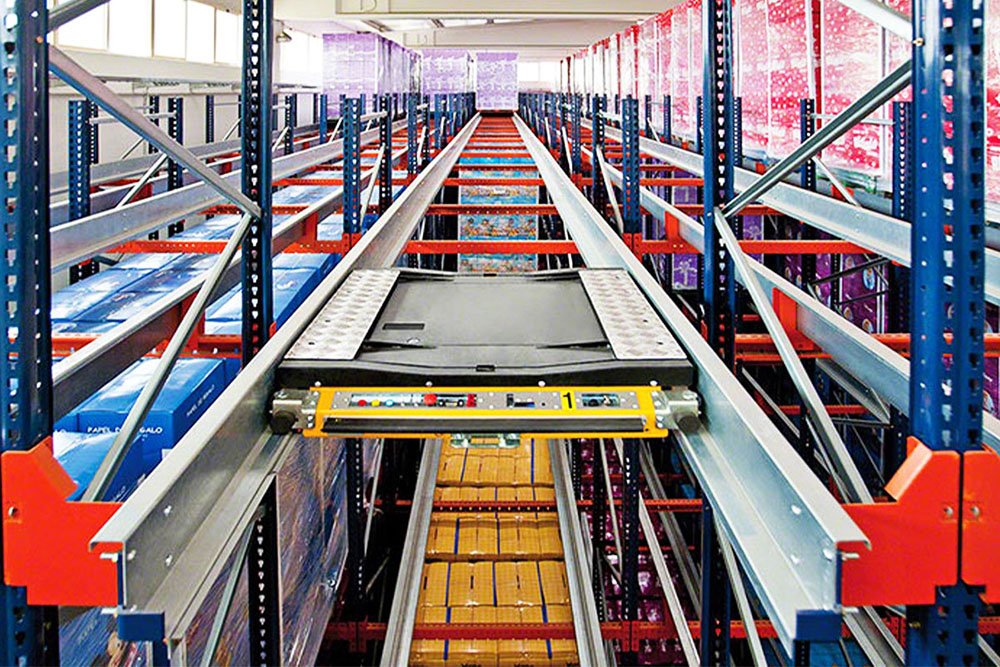

Cold Storage / Freezer
Sealed shuttle electronics, heated battery compartments, and low-temp lubricants for continuous unmanned operation at -30Β°C. Eliminates human cold exposure entirely.
Mother-Child Shuttle
A "mother" carrier traverses the main aisle while deploying "child" shuttles into deep storage lanes. Combines cross-aisle flexibility with ultra-deep lane density.
System Components
A fully integrated ecosystem of racking, shuttles, lifts, and software β engineered to operate as one seamless automated storage machine.

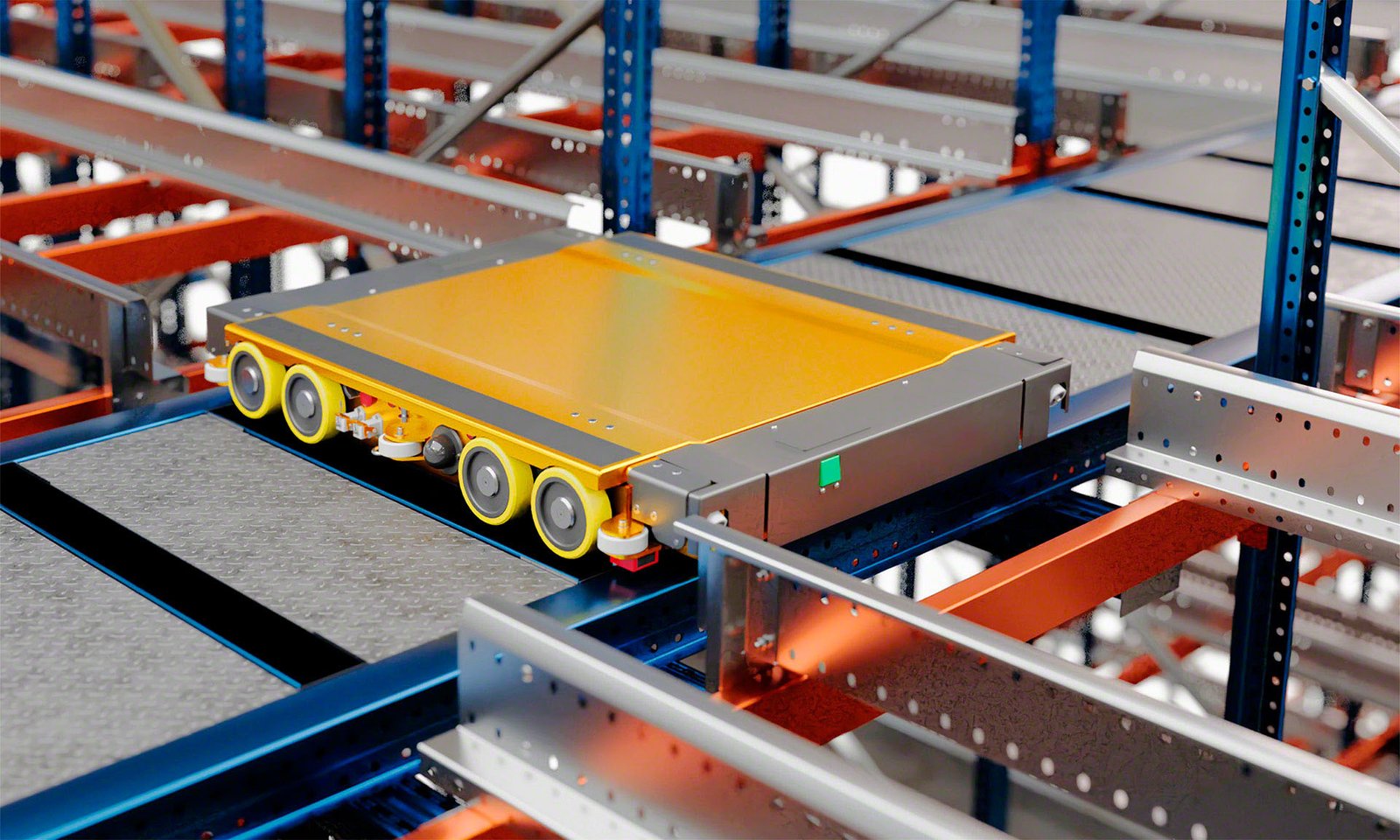

4-Way Shuttle Vehicle
Autonomous Li-ion battery-powered robot with 4-directional drive wheels, pallet lifting mechanism, onboard sensors, and Wi-Fi communication module.

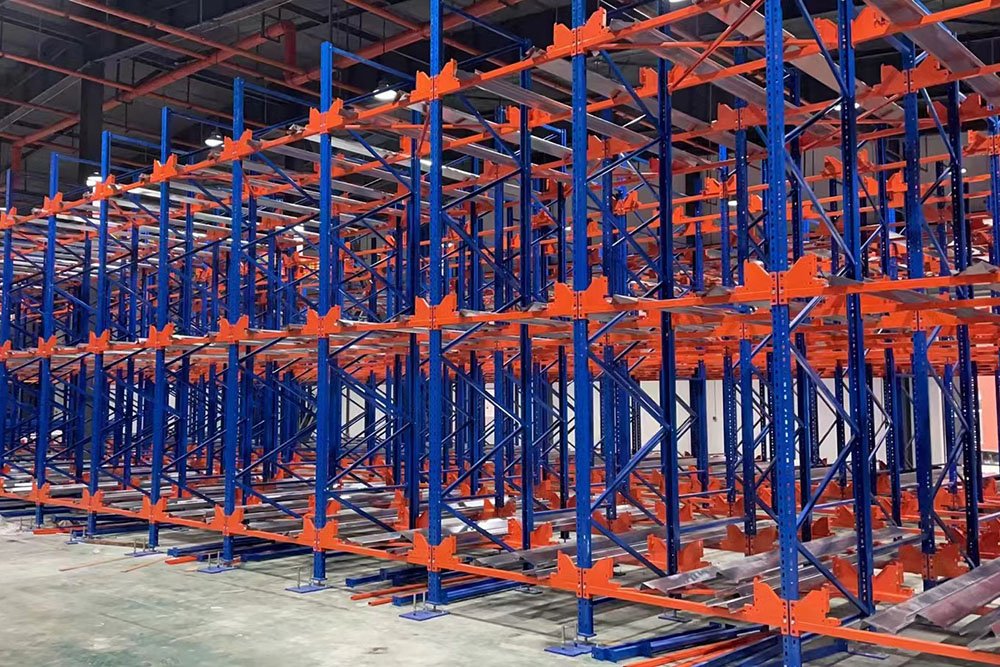

High-Rise Racking Structure
Heavy-duty steel racking up to 25m+ with precision guide rails on every level for shuttle travel in both X and Y axes.
Vertical Pallet Lift
High-speed chain or hydraulic lift for transferring shuttles and pallets between storage levels. Speed 0.5-1.0 m/s, capacity 1500kg.
Conveyor Interface
Inbound/outbound roller or chain conveyors connect the shuttle system to loading docks, pick stations, and truck staging areas.
WCS / WMS Software
Warehouse Control System for shuttle dispatching and path planning + Warehouse Management System for inventory, orders, and ERP integration.
Charging Station
Automated opportunity-charging stations positioned at strategic locations. Shuttles auto-dock for 15-min quick-charge during idle periods.
Technical Specifications
Complete engineering data for the Gieantech 4-way shuttle racking system β fully customisable to your warehouse dimensions and throughput targets.
π Racking Structure
π€ Shuttle Vehicle
β‘ Performance
π’ Project Delivery
Industry Applications
The 4-way shuttle is the preferred automation choice wherever high-density pallet storage, unmanned operation, and intelligent inventory control are required.
Cold Chain & Frozen
Eliminate human exposure to -30Β°C environments. Shuttles operate 24/7 without breaks, reducing cooling costs by compacting storage volume.
Food & Beverage
FIFO/FEFO-compliant automated rotation for perishables. Batch traceability, expiry management, and hygiene compliance built into the WMS.
E-Commerce & 3PL
High-throughput automated pallet buffer for omni-channel fulfilment. Rapid replenishment of pick stations from dense shuttle storage.
Pharmaceutical
GMP-compliant automated storage with lot traceability, serialisation, and temperature-controlled zones. 99.99% inventory accuracy.
Manufacturing
Automated raw material buffer, WIP storage, and finished goods staging. Just-in-time delivery to production lines via conveyor integration.
Automotive
Heavy component storage and sequenced delivery for assembly lines. Up to 1500kg per pallet with Β±2mm positioning accuracy.
Retail Distribution
Centralised distribution centre automation for multi-store replenishment. Mixed-SKU pallet building and cross-dock staging.
Chemical & Hazmat
Unmanned storage of hazardous materials eliminates worker exposure. Fire-rated racking zones with automated emergency retrieval.
Automated Operation Flow
From pallet inbound to storage position β every step is controlled by intelligent software with zero manual intervention required.
Pallet Inbound
Pallet arrives at the inbound conveyor. WMS assigns an optimal storage location based on SKU, FIFO rules, and space availability.
Lift Transfer
The vertical lift carries the pallet to the assigned storage level. Shuttle vehicle is dispatched to the lift station by the WCS.
Shuttle Pickup
The 4-way shuttle positions under the pallet, lifts it, and navigates across the racking grid using AI-optimised path planning.
Storage Put-Away
Shuttle places the pallet at the designated position. WMS updates inventory in real-time. Shuttle returns or proceeds to next task.
Retrieval
When an order is placed, WMS triggers retrieval. Shuttle navigates to the pallet, picks it up, and delivers it to the lift.
Outbound
Lift lowers the pallet to the outbound conveyor. Pallet moves to the pick station or dock for loading. Cycle is fully automated.
4-Way Shuttle vs Other Systems
See how the 4-way shuttle compares to other automated and manual pallet storage solutions across key performance metrics.
| Feature | 4-Way Shuttle | 2-Way Shuttle | Stacker Crane ASRS | Mobile Racking | Selective Rack |
|---|---|---|---|---|---|
| Space Utilisation | βββββ 95% | ββββ 85% | βββββ 90% | ββββ 82% | ββ 42% |
| Automation Level | β Fully Automated | β οΈ Semi-Auto | β Fully Automated | β οΈ Semi-Auto | β Manual |
| Throughput | ββββ 40-60+/hr | βββ 20-35/hr | ββββ 30-50/hr | ββ 15-25/hr | βββ 20-30/hr |
| Scalability | βββββ Add shuttles | βββ Add carts | ββ Fixed crane | βββ Add bays | ββββ Add bays |
| Flexibility | βββββ Any position | ββ Single lane | βββ Single aisle | ββββ Any pallet | βββββ Any pallet |
| Cold Storage | β -30Β°C | β -30Β°C | β -30Β°C | β -35Β°C | β Yes |
| Investment | $$$$ High | $$$ Medium-High | $$$$$ Very High | $$$ Medium-High | $ Low |
| Best For | High-density + flex | Deep-lane bulk | Max height ASRS | Density + access | Max throughput |
Project Implementation Process
From concept to commissioning β a structured engineering process for successful 4-way shuttle system deployment.
Needs Analysis & Feasibility
Detailed assessment of SKU profiles, throughput targets, pallet volumes, building constraints, and ROI modelling. Feasibility report with 3D concept visualisation delivered within 2 weeks.
System Design & Engineering
Racking layout, shuttle fleet sizing, lift capacity, conveyor integration, WMS/WCS architecture, electrical design, and structural calculations. Full engineering package for client approval.
Software Development
WCS configuration, shuttle path algorithms, WMS integration mapping, ERP connectivity, and user interface customisation. Factory acceptance testing (FAT) at our facility.
Manufacturing & Assembly
Racking fabrication, shuttle vehicle production, lift construction, conveyor manufacturing, and full system pre-assembly and testing at our Dongguan factory.
Shipping & Installation
Containerised shipping of all components. On-site racking erection, rail installation, lift assembly, shuttle deployment, and electrical commissioning by our project team.
SAT & Go-Live
Site acceptance testing (SAT) with full-load verification, throughput validation, safety certification, operator training, and system handover. 24/7 remote monitoring activated.
Why Gieantech?
End-to-end ASRS integration capability β from racking to shuttle to software β all manufactured and supported under one roof.
Full System Manufacturer
We manufacture racking, shuttles, lifts, and conveyors in-house β no multi-vendor coordination, single-source warranty and accountability.
In-House WCS/WMS
Our own software team develops WCS and WMS customised for your operation β no third-party licensing fees, direct support and updates.
Free Feasibility Study
Complimentary needs analysis, 3D system design, ROI modelling, and throughput simulation before you commit to any investment.
Global Project Delivery
ASRS projects delivered to 57+ countries with on-site installation teams, commissioning engineers, and local after-sales support.
24/7 Remote Monitoring
IoT-connected shuttle fleet with real-time performance dashboards, predictive maintenance alerts, and remote diagnostic support.
2-Year Full System Warranty
Complete warranty covering racking, shuttles, lifts, conveyors, and software. Lifetime spare parts supply and technical support.
Certifications & Standards
Every Gieantech 4-way shuttle system meets international safety, quality, and automation standards.
ISO 9001:2015
Quality management system covering design, manufacturing, software development, and after-sales service.
CE Marking
European conformity for machinery, electrical, and safety directive compliance including EN 528 for ASRS.
SGS Verified
Third-party structural load testing, shuttle performance validation, and electrical safety inspection.
FEM 9.831
European standard for the design of ASRS racking structures β loads, tolerances, and safety factors.
IEC 61508 (SIL)
Functional safety standard for electronic safety systems β shuttle obstacle detection and emergency stop.
Frequently Asked Questions
Everything you need to know about 4-way shuttle racking β from technology and ROI to implementation and support.
Automate Your Warehouse Today
Get a free feasibility study with 3D system visualisation, throughput simulation, and ROI analysis. Our engineering team will design the optimal 4-way shuttle solution for your operation.
